HIF3H-16DA-2.54DSA(61) - Hirose

HIF3H-16DA-2.54DSA(61) Frequently Asked Questions (FAQs)

• What is the recommended torque for the screw terminals?
  The recommended torque for the screw terminals is 0.5 N·m to 1.5 N·m (0.36 lbf·in to 1.06 lbf·in).
• Is the connector suitable for high-vibration applications?
  Yes, the HIF3H-16DA-2.54DSA(61) is designed to withstand vibrations up to 10 G (10 m/s²) in the frequency range of 10 Hz to 2 kHz.
• Can I use this connector in harsh environments, such as high-temperature or high-humidity conditions?
  The connector is rated for operating temperatures between -40°C to 105°C and can withstand humidity up to 90% RH. However, it's recommended to consult with Hirose Electric Co Ltd or a qualified engineer for specific environmental requirements.
• What is the mating cycle life of the connector?
  The HIF3H-16DA-2.54DSA(61) has a mating cycle life of 500 cycles minimum.

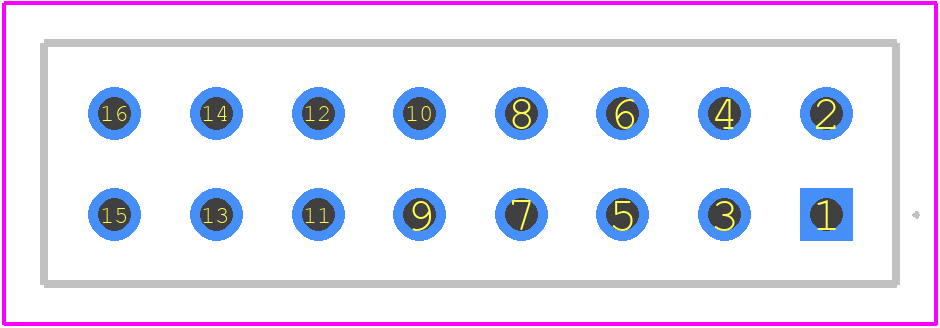

• Are there any specific PCB layout recommendations for this connector?
  Yes, Hirose Electric Co Ltd provides PCB layout recommendations in their documentation, including guidelines for pad size, spacing, and solder mask clearance. It's recommended to consult the manufacturer's documentation for specific design requirements.
