The recommended mating sequence for HIF3HB-50DA-2.54DSA(71) is to mate the guide pins first, followed by the signal pins, to ensure proper alignment and prevent damage to the connector.
Yes, the HIF3HB-50DA-2.54DSA(71) is designed to withstand high-vibration environments, with a vibration resistance of 10-2000Hz, 10G acceleration. However, it's recommended to consult with Hirose Electric Co Ltd or a qualified engineer to ensure the connector meets the specific requirements of your application.
The maximum operating temperature for HIF3HB-50DA-2.54DSA(71) is 125°C, with a temperature range of -40°C to 125°C. However, it's recommended to consult the datasheet and Hirose Electric Co Ltd for specific temperature ratings and derating information.
Yes, the HIF3HB-50DA-2.54DSA(71) is compatible with lead-free soldering processes, with a soldering temperature range of 250-260°C. However, it's recommended to consult with Hirose Electric Co Ltd or a qualified engineer to ensure the connector meets the specific requirements of your soldering process.
The recommended torque for the screw locks on HIF3HB-50DA-2.54DSA(71) is 0.5-1.5 N·m. It's essential to follow the recommended torque specification to ensure proper locking and prevent damage to the connector.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
HIF3HB-50DA-2.54DSA(71) Overview

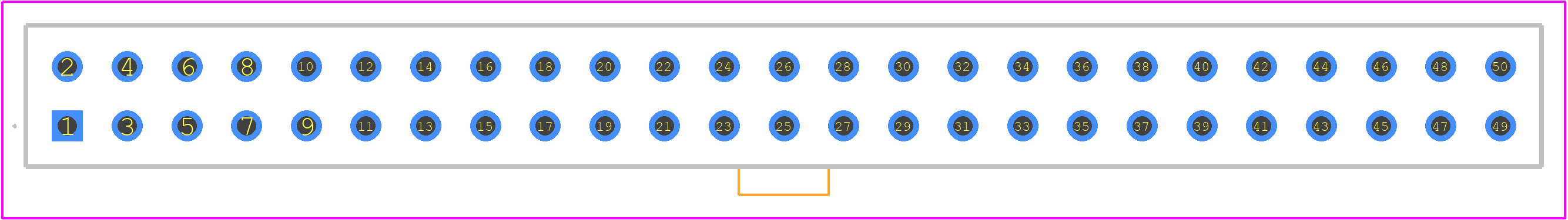

Use the download button to access the HIF3HB-50DA-2.54DSA(71) schematic symbol and PCB footprint.
To find more CAD model downloads similar to this part, try a partial part number search, like HIF3H,
or try a keyword search, such as Headers and Edge Type Connectors
