HIF6A-26PA-1.27DS(71) - Hirose

HIF6A-26PA-1.27DS(71) Details

• Manufacturer Part Number:

  HIF6A-26PA-1.27DS(71)

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

• Country Of Origin:

  Japan

• ECCN Code:

  EAR99

• HTS Code:

  8536.69.40.40

• Factory Lead Time:

  12 Weeks

• Manufacturer:

  Hirose Electric Co Ltd

• YTEOL:

  9.15

• Body Breadth:

  0.335 inch

• Body Depth:

  0.61 inch

• Body Length:

  0.975 inch

• Connector Type:

  BOARD CONNECTOR

• Contact Finish Mating:

  NOT SPECIFIED

• Contact Finish Termination:

  Gold (Au)

• Contact Gender:

  MALE

• Contact Material:

  NOT SPECIFIED

• Contact Pattern:

  RECTANGULAR

• Contact Resistance:

  30 mΩ

• Contact Style:

  SQ PIN-SKT

• DIN Conformance:

  NO

• Dielectric Withstanding Voltage:

  300VAC V

• Durability:

  500 Cycles

• Filter Feature:

  NO

• IEC Conformance:

  NO

• Insulation Resistance:

  1000000000 Ω

• Insulator Color:

  BLACK

• Insulator Material:

  POLYBUTYLENE TEREPHTHALATE

• JESD-609 Code:

  e4

• MIL Conformance:

  NO

• Mating Contact Pitch:

  0.05 inch

• Mating Contact Row Spacing:

  0.1 inch

• Mating Information:

  MULTIPLE MATING PARTS AVAILABLE

• Mixed Contacts:

  NO

• Mounting Option 1:

  LOCKING

• Mounting Style:

  RIGHT ANGLE

• Mounting Type:

  BOARD

• Number Of Connectors:

  ONE

• Number Of PCB Rows:

  4

• Number of Rows Loaded:

  2

• Operating Temperature-Max:

  85 °C

• Operating Temperature-Min:

  -55 °C

• Option:

  GENERAL PURPOSE

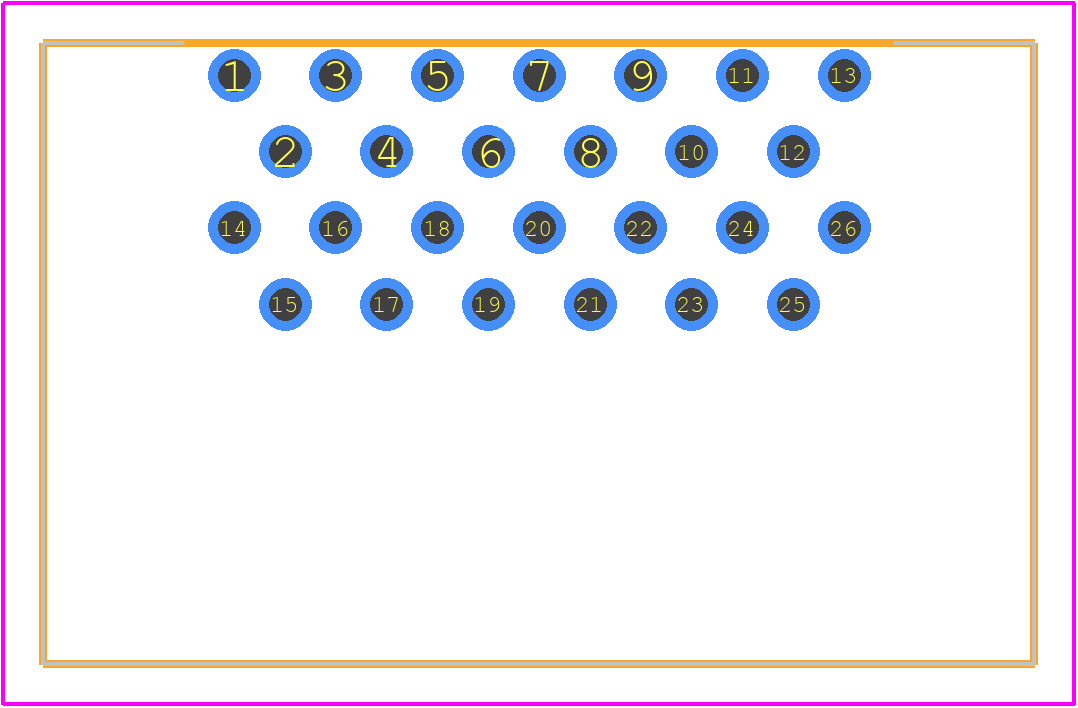

• PCB Contact Pattern:

  STAGGERED

• PCB Contact Row Spacing:

  1.905 mm

• Polarization Key:

  POLARIZED HOUSING

• Rated Current (Signal):

  0.5 A

• Reference Standard:

  UL

• Terminal Length:

  0.11 inch

• Terminal Pitch:

  1.27 mm

• Termination Type:

  SOLDER

• Total Number of Contacts:

  26

• UL Flammability Code:

  94V-0
