HIN202EIBZ - Renesas Electronics

Description: The HIN202E, HIN206E, HIN207E, HIN208E, HIN211E, HIN213E, HIN232E family of RS-232 transmitters/receivers interface circuits meet all ElA high-speed RS-232E and V. 28 specifications, and are particularly suited for those applications where ±12V is not available. A redesigned transmitter circuit improves data rate and slew rate, which makes this suitable for ISDN and High-Speed modems. The transmitter outputs and receiver inputs are protected to ±15kV ESD (Electrostatic Discharge). They require a single +5V

Download HIN202EIBZ Model

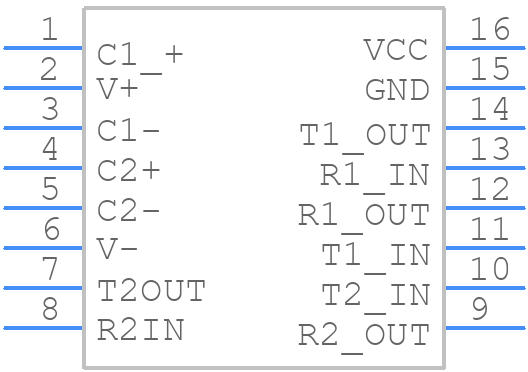

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
HIN202EIBZ - Renesas Electronics PCB footprint - Small Outline Packages - Small Outline Packages - M16.3
click to zoom
3D Models
HIN202EIBZ - Renesas Electronics  - 3D model - Small Outline Packages - M16.3
click to zoom

HIN202EIBZ Details

  • Manufacturer Part Number:

    HIN202EIBZ

  • Brand Name:

    Renesas

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOICW

  • Pin Count:

    16

  • Manufacturer Package Code:

    M16.3

  • Country Of Origin:

    Mainland China, Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    12 Weeks

  • Date Of Intro:

    2017-10-26

  • Manufacturer:

    Renesas Electronics Corporation

  • YTEOL:

    7

  • Differential Output:

    NO

  • Driver Number of Bits:

    2

  • Input Characteristics:

    SCHMITT TRIGGER

  • Interface IC Type:

    LINE TRANSCEIVER

  • Interface Standard:

    EIA-232; V.28

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e3

  • Length:

    10.3 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    2

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Out Swing-Min:

    10 V

  • Output Low Current-Max:

    0.0032 A

  • Output Polarity:

    INVERTED

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Receive Delay-Max:

    10000 ns

  • Receiver Number of Bits:

    2

  • Seated Height-Max:

    2.65 mm

  • Supply Current-Max:

    15 mA

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    4.5 V

  • Supply Voltage-Nom:

    5 V

  • Supply Voltage1-Max:

    5.5 V

  • Supply Voltage1-Min:

    4.5 V

  • Supply Voltage1-Nom:

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Transmit Delay-Max:

    10000 ns

  • Width:

    7.5 mm

HIN202EIBZ Frequently Asked Questions (FAQs)

  • Renesas provides a recommended PCB layout in their application note (R01AN3804EJ0100) which includes guidelines for thermal vias, copper pours, and component placement to minimize thermal resistance and ensure reliable operation.
  • To ensure reliable operation in high-temperature environments, it's essential to follow the recommended thermal design guidelines, use a suitable heat sink, and consider derating the device's power dissipation according to the ambient temperature.
  • Renesas recommends using X5R or X7R ceramic capacitors with a minimum capacitance of 10uF for input and output filtering. The capacitor selection should be based on the specific application requirements and operating conditions.
  • To troubleshoot OCP issues, check the device's datasheet for the OCP threshold and response time. Verify that the input voltage and current are within the recommended operating range. Use an oscilloscope to monitor the device's output voltage and current during fault conditions.
  • Renesas recommends following the JEDEC J-STD-020D.1 standard for soldering profile, which includes a peak temperature of 260°C and a dwell time of 30-60 seconds. It's essential to consult the datasheet and application notes for specific guidance on soldering and assembly.
