HIN206ECBZ - Renesas Electronics

Description: The HIN202E, HIN206E, HIN207E, HIN208E, HIN211E, HIN213E, HIN232E family of RS-232 transmitters/receivers interface circuits meet all ElA high-speed RS-232E and V. 28 specifications, and are particularly suited for those applications where ±12V is not available. A redesigned transmitter circuit improves data rate and slew rate, which makes this suitable for ISDN and High-Speed modems. The transmitter outputs and receiver inputs are protected to ±15kV ESD (Electrostatic Discharge). They require a single +5V

Download HIN206ECBZ Model

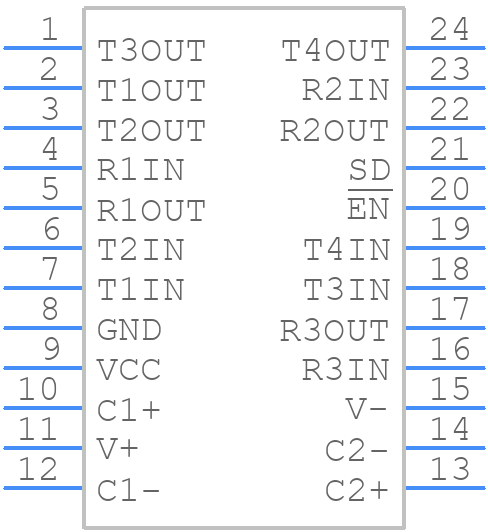

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
HIN206ECBZ - Renesas Electronics PCB footprint - Small Outline Packages - Small Outline Packages - M24.3
click to zoom
3D Models
HIN206ECBZ - Renesas Electronics  - 3D model - Small Outline Packages - M24.3
click to zoom

HIN206ECBZ Details

  • Manufacturer Part Number:

    HIN206ECBZ

  • Brand Name:

    Renesas

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    SOICW

  • Pin Count:

    24

  • Manufacturer Package Code:

    M24.3

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    4 Weeks

  • Date Of Intro:

    2017-10-26

  • Manufacturer:

    Renesas Electronics Corporation

  • YTEOL:

    0

  • Differential Output:

    NO

  • Driver Number of Bits:

    4

  • Input Characteristics:

    SCHMITT TRIGGER

  • Interface IC Type:

    LINE TRANSCEIVER

  • Interface Standard:

    EIA-232; V.28

  • JESD-30 Code:

    R-PDSO-G24

  • JESD-609 Code:

    e3

  • Length:

    15.4 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    3

  • Number of Terminals:

    24

  • Operating Temperature-Max:

    70 °C

  • Out Swing-Min:

    10 V

  • Output Characteristics:

    3-STATE

  • Output Low Current-Max:

    0.0016 A

  • Output Polarity:

    INVERTED

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Packing Method:

    TUBE

  • Peak Reflow Temperature (Cel):

    260

  • Receive Delay-Max:

    10000 ns

  • Receiver Number of Bits:

    3

  • Seated Height-Max:

    2.65 mm

  • Supply Current-Max:

    20 mA

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    4.5 V

  • Supply Voltage-Nom:

    5 V

  • Supply Voltage1-Max:

    5.5 V

  • Supply Voltage1-Min:

    4.5 V

  • Supply Voltage1-Nom:

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    COMMERCIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Transmit Delay-Max:

    10000 ns

  • Width:

    7.5 mm

HIN206ECBZ Frequently Asked Questions (FAQs)

  • The recommended operating temperature range for HIN206ECBZ is -40°C to 85°C, but it can tolerate up to 125°C for short periods during reflow soldering.
  • The HIN206ECBZ has an internal POR and BOD circuitry. The POR ensures the device resets properly during power-up, and the BOD detects voltage drops and resets the device if the voltage falls below a certain threshold. No external components are required, but you can adjust the BOD threshold using external resistors.
  • The HIN206ECBZ can operate at a maximum clock frequency of 20 MHz, but it's recommended to use a clock frequency of 16 MHz or lower for optimal performance and power consumption.
  • The HIN206ECBZ has a built-in UART interface that can be configured using the UART control registers. You can set the baud rate, data bits, stop bits, and parity using these registers. Additionally, you can enable or disable the UART transmitter and receiver using the UART control registers.
  • The VBAT pin is used to connect a battery or a supercapacitor to store data in the device's internal RAM during power-down. This allows the device to retain its state even when the main power supply is turned off.
