Description:Support is limited to customers who have already adopted these products.The HIN202E, HIN206E, HIN207E, HIN208E, HIN211E, HIN213E, HIN232E family of RS-232 transmitters/receivers interface circuits meet all ElA high-speed RS-232E and V. 28 specifications, and are particularly suited for those applications where ±12V is not available. A redesigned transmitter circuit improves data rate and slew rate, which makes this suitable for ISDN and high speed modems. The transmitter outputs and receiver inputs are prot
Renesas provides a recommended PCB layout guide in their application note (R01AN3804EJ0100) which includes thermal vias, thermal pads, and heat sink recommendations to ensure optimal thermal performance.
The HIN207ECBZ has an internal overcurrent protection feature, but it's recommended to add an external overcurrent protection circuit to ensure reliable operation. A simple circuit using a sense resistor and a comparator can be implemented to detect overcurrent conditions and trigger a shutdown or alarm.
Renesas recommends using a ceramic capacitor with a value of 10uF to 22uF, X5R or X7R type, with a voltage rating of 25V or higher, placed as close as possible to the VIN pin to ensure stable operation and reduce noise.
To ensure EMC compliance, follow Renesas' guidelines for PCB layout, component selection, and shielding. Additionally, consider using a metal shield or a shielded enclosure, and ensure that the device is properly grounded and decoupled.
The HIN207ECBZ has an operating temperature range of -40°C to 125°C, but the maximum junction temperature (TJ) should not exceed 150°C. Ensure proper thermal design and heat sinking to maintain a safe operating temperature.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
HIN207ECBZ Overview

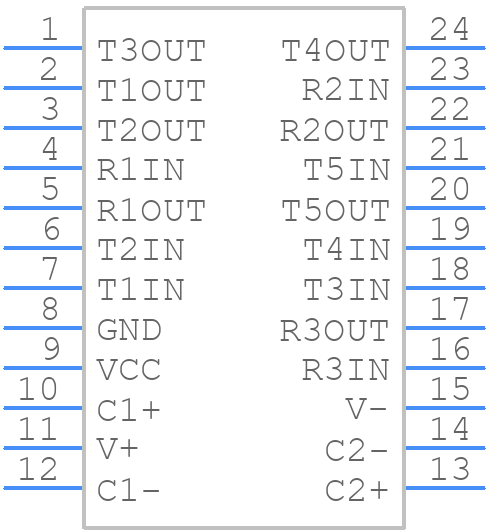

Use the download button to access the HIN207ECBZ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like HIN20,
or try a keyword search, such as Line Driver or Receivers
