Description:The HIN202E, HIN206E, HIN207E, HIN208E, HIN211E, HIN213E, HIN232E family of RS-232 transmitters/receivers interface circuits meet all ElA high-speed RS-232E and V. 28 specifications, and are particularly suited for those applications where ±12V is not available. A redesigned transmitter circuit improves data rate and slew rate, which makes this suitable for ISDN and High-Speed modems. The transmitter outputs and receiver inputs are protected to ±15kV ESD (Electrostatic Discharge). They require a single +5V
Renesas provides a recommended PCB layout in the application note 'HIN208EIAZ-T Thermal Design Guide' (document number: R20AN0244EJ0100). It suggests using a 2-layer or 4-layer PCB with a thermal relief pattern and a heat sink to achieve optimal thermal performance.
To ensure reliable operation in high-temperature environments, it's essential to follow the recommended operating conditions, including the maximum junction temperature (Tj) of 150°C. Additionally, consider using thermal management techniques, such as heat sinks or thermal interfaces, and ensure proper airflow around the device.
The HIN208EIAZ-T has built-in ESD protection, but it's still important to follow proper handling and assembly procedures to prevent ESD damage. Renesas recommends using an ESD wrist strap or mat, and storing the devices in anti-static packaging.
Yes, the HIN208EIAZ-T is designed to operate in high-vibration environments. However, it's essential to ensure that the device is properly mounted and secured to the PCB to prevent mechanical stress. Renesas recommends following the recommended mounting and soldering procedures.
Renesas recommends following the soldering conditions outlined in the 'Renesas Semiconductor Package Mounting Guide' (document number: R01DS0244EJ0100). The recommended soldering temperature is 260°C, with a maximum soldering time of 10 seconds.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
HIN208EIAZ-T Overview

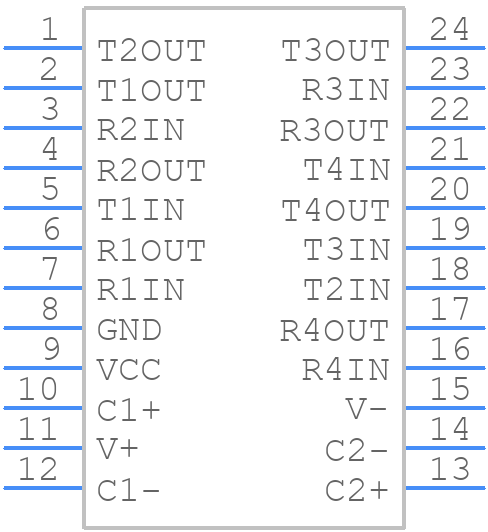

Use the download button to access the HIN208EIAZ-T schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like HIN20,
or try a keyword search, such as Line Driver or Receivers
