HIN211ECBZ - Renesas Electronics

Description: The HIN202E, HIN206E, HIN207E, HIN208E, HIN211E, HIN213E, HIN232E family of RS-232 transmitters/receivers interface circuits meet all ElA high-speed RS-232E and V. 28 specifications, and are particularly suited for those applications where ±12V is not available. A redesigned transmitter circuit improves data rate and slew rate, which makes this suitable for ISDN and High-Speed modems. The transmitter outputs and receiver inputs are protected to ±15kV ESD (Electrostatic Discharge). They require a single +5V

Download HIN211ECBZ Model

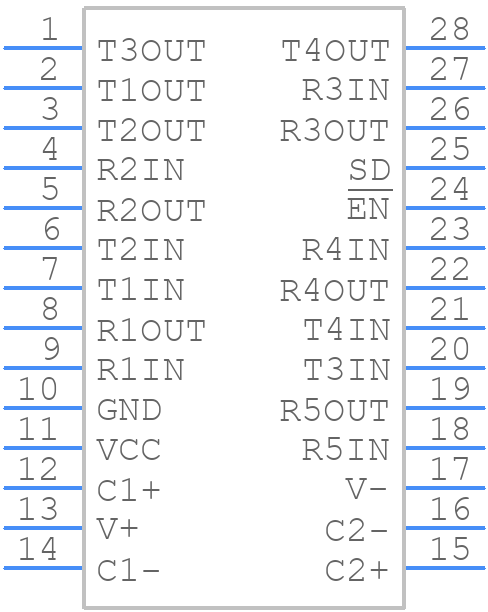

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
HIN211ECBZ - Renesas Electronics PCB footprint - Small Outline Packages - Small Outline Packages - M28.3_-
click to zoom
3D Models
HIN211ECBZ - Renesas Electronics  - 3D model - Small Outline Packages - M28.3_-
click to zoom

HIN211ECBZ Details

  • Manufacturer Part Number:

    HIN211ECBZ

  • Brand Name:

    Renesas

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOICW

  • Pin Count:

    28

  • Manufacturer Package Code:

    M28.3

  • Country Of Origin:

    Mainland China, Malaysia, Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    12 Weeks

  • Date Of Intro:

    2017-10-26

  • Manufacturer:

    Renesas Electronics Corporation

  • YTEOL:

    7

  • Differential Output:

    NO

  • Driver Number of Bits:

    4

  • Input Characteristics:

    SCHMITT TRIGGER

  • Interface IC Type:

    LINE TRANSCEIVER

  • Interface Standard:

    EIA-232; V.28

  • JESD-30 Code:

    R-PDSO-G28

  • JESD-609 Code:

    e3

  • Length:

    17.9 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    4

  • Number of Terminals:

    28

  • Operating Temperature-Max:

    70 °C

  • Out Swing-Min:

    10 V

  • Output Characteristics:

    3-STATE

  • Output Low Current-Max:

    0.0016 A

  • Output Polarity:

    INVERTED

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Receive Delay-Max:

    10000 ns

  • Receiver Number of Bits:

    5

  • Seated Height-Max:

    2.65 mm

  • Supply Current-Max:

    20 mA

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    4.5 V

  • Supply Voltage-Nom:

    5 V

  • Supply Voltage1-Max:

    5.5 V

  • Supply Voltage1-Min:

    4.5 V

  • Supply Voltage1-Nom:

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    COMMERCIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Transmit Delay-Max:

    10000 ns

  • Width:

    7.5 mm

HIN211ECBZ Frequently Asked Questions (FAQs)

  • Renesas provides a recommended PCB layout guide in their application note (APL-AN-114) for the HIN211ECBZ. It suggests using a 2-layer or 4-layer PCB with a thermal relief pattern on the bottom layer to improve heat dissipation.
  • To ensure reliable operation in high-temperature environments, it's essential to follow the recommended operating conditions, provide adequate heat sinking, and consider using thermal interface materials (TIMs) to reduce thermal resistance. Additionally, Renesas recommends using a thermal monitoring circuit to detect overheating and take corrective action.
  • The HIN211ECBZ has built-in ESD protection diodes on all pins, which can withstand up to ±2 kV according to the IEC61000-4-2 standard. However, it's still recommended to follow proper ESD handling procedures during assembly and testing to prevent damage.
  • Yes, the HIN211ECBZ is suitable for battery-powered devices due to its low quiescent current (IQ) of 10 μA (typical) and low shutdown current of 1 μA (typical). However, it's essential to consider the overall system power consumption and battery life requirements when designing the device.
  • Renesas provides a troubleshooting guide in their application note (APL-AN-115) for the HIN211ECBZ. It covers common issues, such as output voltage errors, overcurrent protection, and thermal shutdown, and provides guidance on how to identify and resolve these issues.
