Description:The HIN232-HIN241 family of RS-232 transmitters/receivers interface circuits meet all ElA RS-232E and V. 28 specifications, and are particularly suited for those applications where ±12V is not available. They require a single +5V power supply (except HIN239) and feature onboard charge pump voltage converters which generate +10V and -10V supplies from the 5V supply. The family of devices offer a wide variety of RS-232 transmitter/receiver combinations to accommodate various applications. The drivers feature
Renesas provides a recommended PCB layout guide in their application note (APN) documents, which includes thermal design considerations, such as thermal vias, copper pours, and heat sink attachment. It's essential to follow these guidelines to ensure optimal thermal performance.
The HIN238CBZ has an internal overcurrent protection (OCP) feature, but it's not enabled by default. To implement OCP, you need to connect an external resistor (Rocp) between the OCP pin and GND, and set the OCP threshold voltage (Vocp) according to the datasheet. Additionally, you can use an external circuit to detect overcurrent conditions and shut down the device if necessary.
The maximum allowed voltage on the EN pin is 6V, but it's recommended to keep it below 5.5V to ensure reliable operation. You can use a voltage divider or a voltage regulator to ensure the EN pin voltage is within the safe operating range. Additionally, make sure to add a pull-down resistor to prevent unwanted enable signals.
To troubleshoot issues with the HIN238CBZ, start by checking the power supply voltage, input voltage, and output voltage. Verify that the device is properly configured and that the EN pin is correctly driven. Use an oscilloscope to monitor the device's behavior and identify any anomalies. Consult the datasheet and application notes for troubleshooting guidelines and fault detection methods.
The HIN238CBZ is rated for operation up to 125°C, but its performance and reliability may degrade at high temperatures. Be sure to follow the recommended operating conditions and derate the device's specifications accordingly. Consider using thermal management techniques, such as heat sinks or thermal interfaces, to maintain a safe operating temperature.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
HIN238CBZ Overview

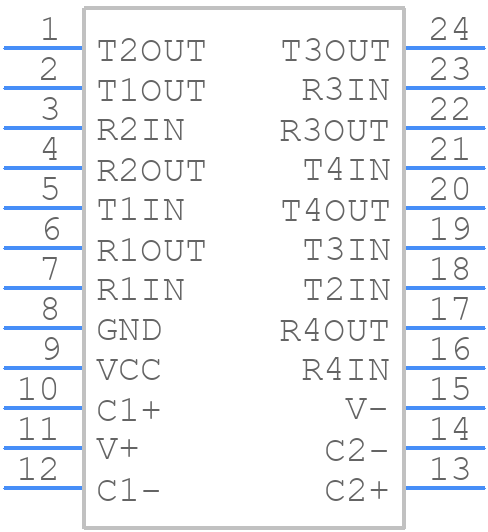

Use the download button to access the HIN238CBZ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like HIN23,
or try a keyword search, such as Line Driver or Receivers
