HIN239CBZ-T - Renesas Electronics

Description: The HIN232-HIN241 family of RS-232 transmitters/receivers interface circuits meet all ElA RS-232E and V. 28 specifications, and are particularly suited for those applications where ±12V is not available. They require a single +5V power supply (except HIN239) and feature onboard charge pump voltage converters which generate +10V and -10V supplies from the 5V supply. The family of devices offer a wide variety of RS-232 transmitter/receiver combinations to accommodate various applications. The drivers feature

Download HIN239CBZ-T Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

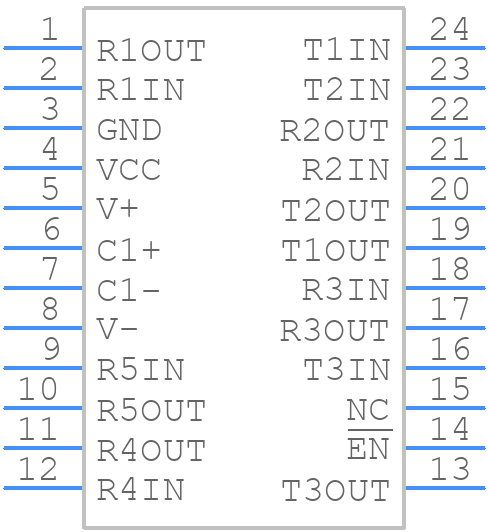

HIN239CBZ-T - Renesas Electronics - PCB symbol
click to zoom
PCB Footprints
HIN239CBZ-T - Renesas Electronics PCB footprint - Small Outline Packages - Small Outline Packages - M24.3
click to zoom
3D Models
HIN239CBZ-T - Renesas Electronics - 3D model - Small Outline Packages - M24.3
click to zoom

HIN239CBZ-T Details

  • Manufacturer Part Number:

    HIN239CBZ-T

  • Brand Name:

    Renesas

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    SOICW

  • Package Description:

    SOIC-24

  • Pin Count:

    24

  • Manufacturer Package Code:

    M24.3

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    4 Weeks

  • Date Of Intro:

    2017-10-26

  • Manufacturer:

    Renesas Electronics Corporation

  • YTEOL:

    0

  • Differential Output:

    NO

  • Driver Number of Bits:

    3

  • Input Characteristics:

    SCHMITT TRIGGER

  • Interface IC Type:

    LINE TRANSCEIVER

  • Interface Standard:

    V.28; EIA-232-E

  • JESD-30 Code:

    R-PDSO-G24

  • JESD-609 Code:

    e3

  • Length:

    15.4 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    3

  • Number of Terminals:

    24

  • Operating Temperature-Max:

    70 °C

  • Out Swing-Min:

    10 V

  • Output Characteristics:

    3-STATE

  • Output Low Current-Max:

    0.0016 A

  • Output Polarity:

    INVERTED

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Receiver Number of Bits:

    5

  • Seated Height-Max:

    2.65 mm

  • Supply Current-Max:

    10 mA

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    4.5 V

  • Supply Voltage-Nom:

    5 V

  • Supply Voltage1-Max:

    5.5 V

  • Supply Voltage1-Min:

    4.5 V

  • Supply Voltage1-Nom:

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    COMMERCIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    7.5 mm

HIN239CBZ-T Frequently Asked Questions (FAQs)

  • Renesas provides a recommended PCB layout guide in their application note (APN) documents, which includes guidelines for thermal vias, copper pours, and component placement to ensure optimal thermal performance.
  • To ensure reliable operation in high-temperature environments, it's essential to follow the recommended operating conditions, use a suitable thermal interface material, and implement a robust thermal management system, such as a heat sink or fan.
  • The input capacitor should be a low-ESR, high-frequency capacitor with a minimum capacitance value of 10uF, and a voltage rating of at least 25V. The capacitor should be placed as close as possible to the VIN pin to minimize noise and ensure stable operation.
  • To troubleshoot issues with the output voltage regulation, check the input voltage, output load, and feedback resistors. Ensure that the input voltage is within the recommended range, the output load is within the specified current limit, and the feedback resistors are correctly configured. Also, verify that the device is properly soldered and that there are no signs of overheating.
  • Operating the device beyond the recommended operating conditions can lead to reduced reliability, decreased performance, and potentially even device failure. It's essential to ensure that the device operates within the specified temperature range, input voltage, and output current to maintain its reliability and performance.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

HIN239CBZ-T Overview

Use the download button to access the HIN239CBZ-T schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like HIN23, or try a keyword search, such as Line Driver or Receivers
