Description:The HIP2105 and HIP2106A are high frequency MOSFET drivers optimized to drive two N-channel power MOSFETs in a synchronous buck converter topology. The HIP2105 has HI/LI inputs and the HIP2106A has a single PWM input. Both these drivers, combined with Renesas multi-phase buck PWM controllers, form a complete single-stage core-voltage regulator solution with high-efficiency performance at high switching frequency for advanced microprocessors. The HIP2105 and HIP2106A are biased by a single low voltage supply
Renesas provides a recommended PCB layout guide in their application note AN9715, which includes guidelines for thermal vias, copper pours, and component placement to minimize thermal resistance and ensure reliable operation.
To ensure reliable operation at high temperatures, it's essential to follow the recommended operating conditions, including junction temperature (Tj) and ambient temperature (Ta). Additionally, consider using thermal management techniques such as heat sinks, thermal interfaces, and airflow to keep the device within its specified temperature range.
While the datasheet specifies the recommended operating voltage range, it's essential to note that the maximum allowable voltage on the input pins is typically 10% above the maximum recommended voltage to account for voltage spikes and transients. However, it's always best to consult with Renesas support or a qualified engineer to determine the specific voltage limits for your application.
Renesas provides a troubleshooting guide in their application note AN9714, which covers common issues, such as over-temperature shutdown, undervoltage lockout, and output voltage regulation. Additionally, consider using oscilloscopes, logic analyzers, and other diagnostic tools to identify and isolate issues.
The HIP2105FRZ-T has built-in ESD protection and latch-up prevention measures, including input clamps, output clamps, and internal ESD diodes. However, it's still essential to follow proper handling and assembly procedures to prevent ESD damage and latch-up. Consult the datasheet and application notes for more information.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
HIP2105FRZ-T Overview

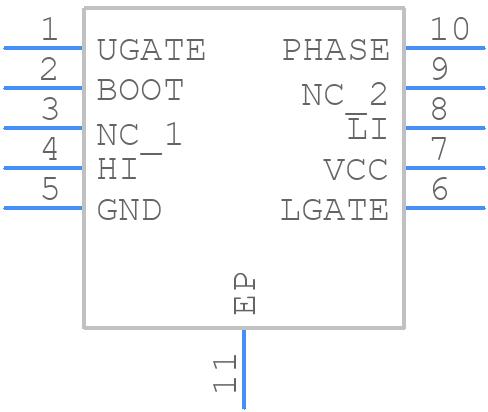

Use the download button to access the HIP2105FRZ-T schematic symbol, PCB footprint, and 3D model.
