HIP2211FRTZ-T7A - Renesas Electronics

Description: The HIP2211 is a 100V, 3A source, 4A sink high-frequency half-bridge NMOS FET driver. The HIP2211 features standard HI/LI inputs and is pin-compatible with popular Renesas bridge drivers such as the HIP2101 and ISL2111. Its wide operating supply range of 6V to 18V and integrated high-side bootstrap diode supports driving the high-side and low-side NMOS in 100V half-bridge applications.This driver features a strong 3A source, 4A sink driver with very fast 15ns typical propagation delay and 2ns typical delay

Download HIP2211FRTZ-T7A Model

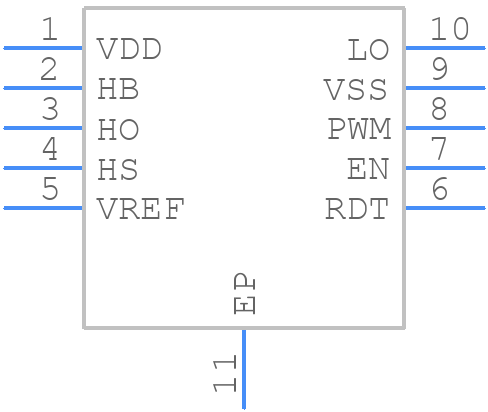

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
HIP2211FRTZ-T7A - Renesas Electronics PCB footprint - Small Outline No-lead - Small Outline No-lead - L10.4x4 Rev 2, 4/15
click to zoom
3D Models
HIP2211FRTZ-T7A - Renesas Electronics  - 3D model - Small Outline No-lead - L10.4x4 Rev 2, 4/15
click to zoom

HIP2211FRTZ-T7A Details

  • Manufacturer Part Number:

    HIP2211FRTZ-T7A

  • Brand Name:

    Renesas

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    TDFN

  • Pin Count:

    10

  • Manufacturer Package Code:

    L10.4X4

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    2020-06-23

  • Manufacturer:

    Renesas Electronics Corporation

  • YTEOL:

    0

  • High Side Driver:

    YES

  • Input Characteristics:

    SCHMITT TRIGGER

  • Interface IC Type:

    HALF BRIDGE BASED MOSFET DRIVER

  • JESD-30 Code:

    S-PDSO-N10

  • JESD-609 Code:

    e3

  • Length:

    4 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    10

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Characteristics:

    STANDARD

  • Output Peak Current Limit-Nom:

    4 A

  • Output Polarity:

    TRUE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVSON

  • Package Equivalence Code:

    SOLCC10,.16,32

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Seated Height-Max:

    0.75 mm

  • Supply Current-Max:

    2.32 mA

  • Supply Voltage-Max:

    18 V

  • Supply Voltage-Min:

    6 V

  • Supply Voltage-Nom:

    12 V

  • Supply Voltage1-Max:

    115 V

  • Supply Voltage1-Nom:

    12 V

  • Surface Mount:

    YES

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.8 mm

  • Terminal Position:

    DUAL

  • Turn-off Time:

    0.03 µs

  • Turn-on Time:

    0.03 µs

  • Width:

    4 mm

HIP2211FRTZ-T7A Frequently Asked Questions (FAQs)

  • Renesas provides a recommended PCB layout guide in their application note AN9718, which includes guidelines for thermal vias, copper pours, and component placement to minimize thermal resistance and ensure optimal performance.
  • To ensure reliable operation in high-temperature environments, it's essential to follow the recommended operating conditions, including junction temperature (Tj) and ambient temperature (Ta). Additionally, consider using thermal management techniques such as heat sinks, thermal interfaces, and airflow to keep the device within its specified operating range.
  • To mitigate EMI and RFI in HIP2211FRTZ-T7A-based designs, consider using shielding, filtering, and grounding techniques. Ensure proper PCB layout, use of EMI filters, and follow Renesas' guidelines for EMI and RFI mitigation in their application notes and datasheets.
  • To troubleshoot issues with the HIP2211FRTZ-T7A, start by reviewing the datasheet and application notes for proper usage and configuration. Check for proper power supply, signal integrity, and thermal management. Use oscilloscopes and logic analyzers to debug the system, and consult Renesas' technical support resources and FAQs for guidance.
  • The HIP2211FRTZ-T7A's OCP and OVP features are designed to protect the device from damage. However, they may also impact system design, such as requiring additional circuitry to reset the device after a fault event. Ensure that the system design takes into account the device's protection features and provides adequate reset and fault handling mechanisms.
