HIP4020IBZ - Renesas Electronics

Description: In the Functional Block Diagram of the HIP4020, the four switches and a load are arranged in an H-configuration so that the drive voltage from terminals OUTA and OUTB can be cross-switched to change the direction of current flow in the load. This is commonly known as 4-quadrant load control. As shown Figure 1, switches Q1 and Q4 are conducting or in an ON state when current flows from VDD through Q1 to the load, and then through Q4 to terminal VSSB; where load terminal OUTA is at a positive potential with r

Download HIP4020IBZ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

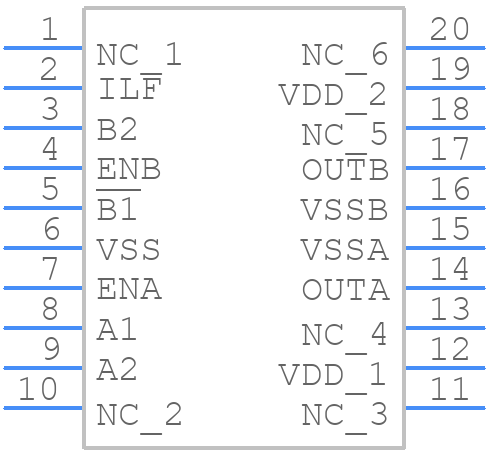

Symbol
HIP4020IBZ - Renesas Electronics - PCB symbol
click to zoom
PCB Footprints
HIP4020IBZ - Renesas Electronics PCB footprint - Small Outline Packages - Small Outline Packages - M20.3
click to zoom
3D Models
HIP4020IBZ - Renesas Electronics - 3D model - Small Outline Packages - M20.3
click to zoom

HIP4020IBZ Details

  • Manufacturer Part Number:

    HIP4020IBZ

  • Brand Name:

    Renesas

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    SOICW

  • Package Description:

    SOIC-20

  • Pin Count:

    20

  • Manufacturer Package Code:

    M20.3

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    18 Weeks

  • Date Of Intro:

    2017-10-30

  • Manufacturer:

    Renesas Electronics Corporation

  • YTEOL:

    0

  • Analog IC - Other Type:

    STEPPER MOTOR CONTROLLER

  • JESD-30 Code:

    R-PDSO-G20

  • JESD-609 Code:

    e3

  • Length:

    12.8 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    20

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    0.5 A

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP8,.4

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    2.65 mm

  • Supply Current-Max (Isup):

    0.8 mA

  • Supply Voltage-Max (Vsup):

    15 V

  • Supply Voltage-Min (Vsup):

    2.5 V

  • Supply Voltage-Nom (Vsup):

    3 V

  • Surface Mount:

    YES

  • Terminal Finish:

    MATTE TIN

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    7.5 mm

HIP4020IBZ Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the high-current paths short and use a common grounding point for the input and output capacitors.
  • Monitor the input voltage, output current, and junction temperature to ensure they are within the specified limits. Use thermal management techniques such as heat sinks or thermal interfaces to keep the junction temperature below 150°C.
  • A low-ESR ceramic capacitor (e.g., X5R or X7R) with a value of 10-22 μF is recommended. The capacitor should be placed close to the VIN pin and have a low inductance path to the input voltage source.
  • Use the EN pin to disable the device when not in use. Ensure the input voltage is removed or reduced to a minimum when the device is in standby mode. Use a low-quiescent-current voltage regulator for the VCC pin.
  • A low-ESR ceramic capacitor (e.g., X5R or X7R) with a value of 10-47 μF is recommended. The capacitor should be placed close to the VOUT pin and have a low inductance path to the output load.
