HIP4082IPZ - Renesas Electronics

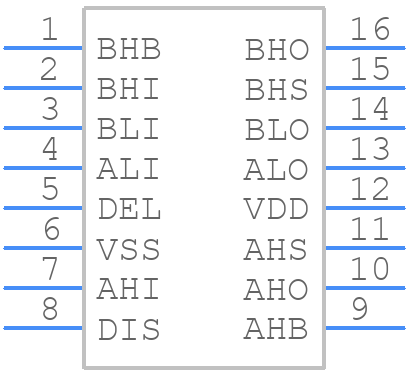

HIP4082IPZ Details

• Manufacturer Part Number:

  HIP4082IPZ

• Brand Name:

  Renesas

• Pbfree Code:

  Yes

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

• Part Package Code:

  PDIP

• Package Description:

  PDIP-16

• Pin Count:

  16

• Manufacturer Package Code:

  E16.3

• Country Of Origin:

  Malaysia, Philippines, Taiwan

• ECCN Code:

  EAR99

• HTS Code:

  8542.39.00.60

• Factory Lead Time:

  18 Weeks

• Date Of Intro:

  2017-11-01

• Manufacturer:

  Renesas Electronics Corporation

• YTEOL:

  8

• Additional Feature:

  1.25A PEAK CURRENT

• High Side Driver:

  YES

• Input Characteristics:

  SCHMITT TRIGGER

• Interface IC Type:

  FULL BRIDGE BASED MOSFET DRIVER

• JESD-30 Code:

  R-PDIP-T16

• JESD-609 Code:

  e3

• Length:

  19.17 mm

• Number of Functions:

  1

• Number of Terminals:

  16

• Operating Temperature-Max:

  125 °C

• Operating Temperature-Min:

  -55 °C

• Output Characteristics:

  STANDARD

• Output Peak Current Limit-Nom:

  1.4 A

• Output Polarity:

  TRUE

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  DIP

• Package Shape:

  RECTANGULAR

• Package Style:

  IN-LINE

• Seated Height-Max:

  5.33 mm

• Supply Current-Max:

  6.6 mA

• Supply Voltage-Max:

  15 V

• Supply Voltage-Min:

  8.5 V

• Supply Voltage-Nom:

  12 V

• Supply Voltage1-Nom:

  12 V

• Surface Mount:

  NO

• Temperature Grade:

  MILITARY

• Terminal Finish:

  Matte Tin (Sn) - annealed

• Terminal Form:

  THROUGH-HOLE

• Terminal Pitch:

  2.54 mm

• Terminal Position:

  DUAL

• Turn-off Time:

  0.1 µs

• Turn-on Time:

  0.15 µs

• Width:

  7.62 mm
