Description:The HIP4086 and HIP4086A (referred to as the HIP4086/A) are 3-phase N-channel MOSFET drivers. Both parts are specifically targeted for PWM motor control. These drivers have flexible input protocol for driving every possible switch combination. The user can even override the shoot-through protection for switched reluctance applications. The HIP4086/A have a wide range of programmable dead times (0. 5μs to 4. 5μs) which makes them very suitable for the low frequencies (up to 100kHz) typically used for motor d
The recommended PCB layout for optimal thermal performance involves placing the HIP4086AB near the edge of the board, using a solid ground plane, and minimizing the thermal resistance between the device and the heat sink. A 4-layer board with a dedicated power plane and a solid ground plane is recommended. Additionally, using thermal vias and a heat sink with a thermal interface material can help to further reduce thermal resistance.
To ensure reliable operation at high temperatures, it is essential to follow the recommended thermal design guidelines, including using a heat sink, thermal interface material, and ensuring good airflow. Additionally, the device should be operated within the recommended operating temperature range, and the power dissipation should be kept within the specified limits. It is also important to monitor the device's junction temperature and take corrective action if it exceeds the recommended maximum temperature.
The critical components that affect the HIP4086AB's performance include the input capacitors, output capacitors, and the inductor. The input capacitors should be selected based on the input voltage and current requirements, while the output capacitors should be chosen based on the output voltage and current requirements. The inductor should be selected based on the switching frequency, output current, and inductance value.
To troubleshoot issues with the HIP4086AB, start by checking the input voltage, output voltage, and current. Verify that the device is operating within the recommended operating conditions and that the input and output capacitors are properly selected. Check for any signs of overheating, such as excessive temperature or thermal shutdown. Use an oscilloscope to check the switching waveforms and ensure that the device is operating in the correct mode. Consult the datasheet and application notes for troubleshooting guidelines and fault detection methods.
The key considerations for EMI and EMC compliance when using the HIP4086AB include using a shielded inductor, placing the device and associated components in a shielded area, and using EMI filters or common-mode chokes to reduce radiated emissions. Additionally, the PCB layout should be designed to minimize radiation and ensure that the device is operated within the recommended frequency range. It is also important to follow the recommended layout guidelines and use EMI-compliant components to minimize emissions.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
HIP4086AB Overview

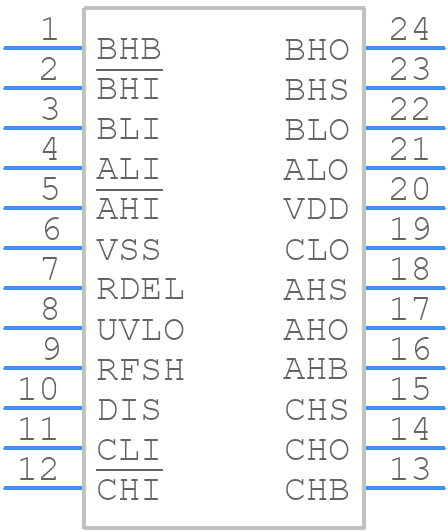

Use the download button to access the HIP4086AB schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like HIP40,
or try a keyword search, such as MOSFET Drivers
