A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the signal traces short and away from noise sources. Use a 50-ohm impedance-controlled trace for the high-speed signals.
Ensure good thermal design, including a heat sink and thermal interface material. Keep the junction temperature below 125°C. Use a thermal management strategy, such as a fan or heat pipe, to maintain a safe operating temperature.
Power up the core voltage (VCC) before the I/O voltage (VCCIO). Ensure a monotonic power-up sequence, with a minimum rise time of 1 ms. Use a power-on reset (POR) circuit to ensure a clean power-up sequence.
Use the device's power-saving features, such as clock gating and dynamic voltage and frequency scaling. Optimize the system's power management strategy, including using low-power modes and dynamic voltage scaling.
Handle the device by the body or the pins, avoiding direct contact with the die. Use an ESD wrist strap or mat, and store the device in an anti-static bag or container. Follow the JEDEC standard for ESD handling and protection.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
HLCP-J100 Overview

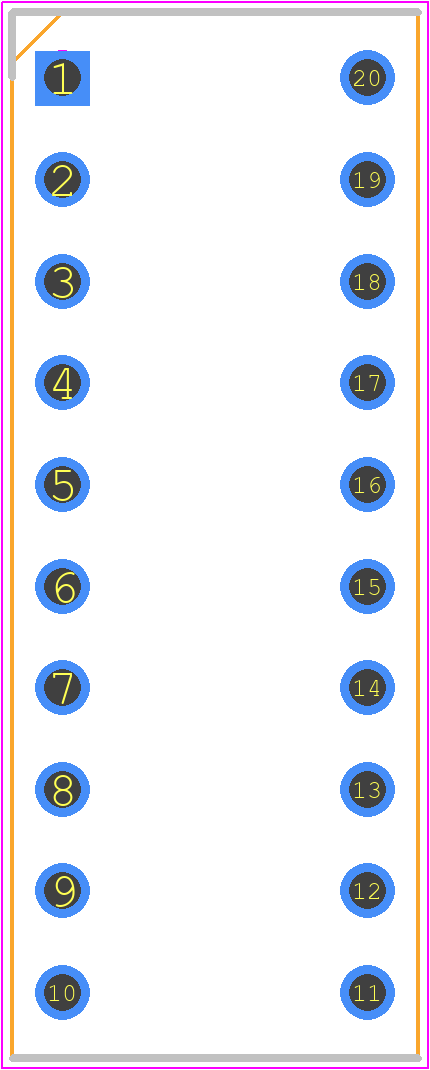

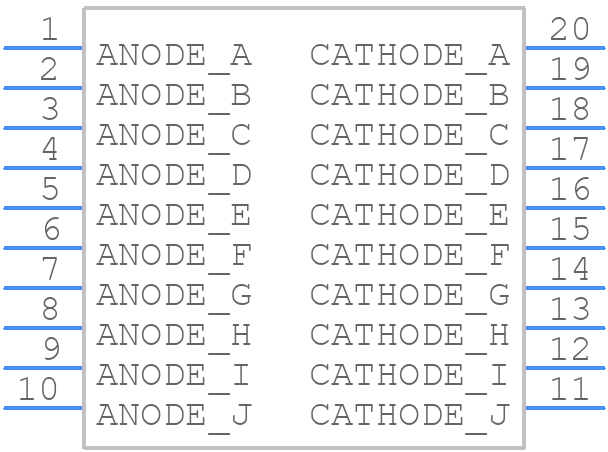

Use the download button to access the HLCP-J100 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like HLCP-,
or try a keyword search, such as Visible LEDs
