HLM-100001PSM - Marki Microwave

Description: Signal Conditioning A high-power GaAs Schottky diode signal limiter featuring high IP3 over a broad DC-10GHz bandwidth. It offers low insertion loss and excellent return loss from DC through X band and has a typical 1 dB compression point of 11 dBm.

Download HLM-100001PSM Model

Schematic
symbols

PCB
footprints

3D
models

Alert me if there are changes to this HLM-100001PSM model

Email notifications will be applied after download.

Send part feedback

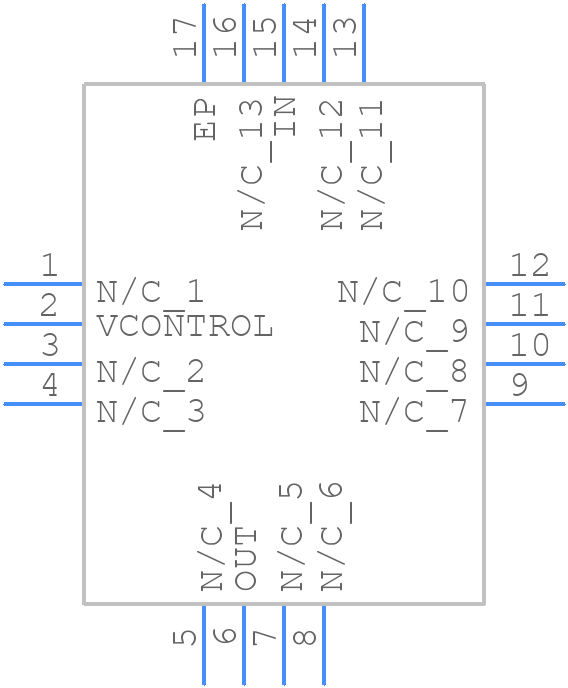

Symbol

HLM-100001PSM - Marki Microwave - PCB symbol

PCB Footprints

HLM-100001PSM - Marki Microwave PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - HLM-100001PSM

3D Models

HLM-100001PSM - Marki Microwave - 3D model - Quad Flat No-Lead - HLM-100001PSM

Datasheet Download Datasheet
Stock & Prices Price & Stock for HLM-100001PSM
Part Number HLM-100001PSM
Manufacturer Marki Microwave
Pin Count 17
Part Category Integrated Circuit
Package Category Quad Flat No-Lead
Footprint Name Quad Flat No-Lead - HLM-100001PSM
Released Date May 6, 2026
Pinout / Pin List Click Here (Member Only)

Trust Checks

Community Provided

System Verified

Community Approved

HLM-100001PSM Overview

Use the download button to access the HLM-100001PSM schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like HLM-1, or try a keyword search, such as Fixed Inductors
