Description:The HM-6642/883 is a 512 x 8 CMOS NiCr fusible link Programmable Read Only Memory in the popular 24 pin, byte wide pinout. Synchronous circuit design techniques combine with CMOS processing to give this device High-Speed performance with very low power dissipation. On-chip address latches are provided, allowing easy interfacing with recent generation microprocessors that use multiplexed address/data bus structures, such as the 8085. The output enable controls, both active low and active high, further simpli
The recommended operating temperature range for HM1-6642B/883 is -55°C to 125°C, as specified in the datasheet. However, it's essential to note that the device's performance and reliability may degrade if operated outside this range for extended periods.
To ensure reliable data transmission using HM1-6642B/883, it's crucial to follow proper PCB design guidelines, use suitable transmission lines, and implement error detection and correction mechanisms in your system. Additionally, ensure that the device is operated within its specified voltage and frequency ranges.
The HM1-6642B/883 supports a maximum data transfer rate of 100 Mbps, as specified in the datasheet. However, the actual data transfer rate may vary depending on the system design, PCB layout, and operating conditions.
Yes, HM1-6642B/883 is designed to be radiation-hardened and can be used in space and other high-reliability applications. However, it's essential to consult with Renesas Electronics Corporation or a qualified radiation effects engineer to ensure that the device meets the specific radiation requirements of your application.
To troubleshoot issues with HM1-6642B/883, start by consulting the datasheet and application notes. Check the device's power supply, clock signals, and data transmission lines for any anomalies. Use oscilloscopes and logic analyzers to debug the system. If the issue persists, contact Renesas Electronics Corporation's technical support or a qualified engineer for further assistance.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
HM1-6642B/883 Overview

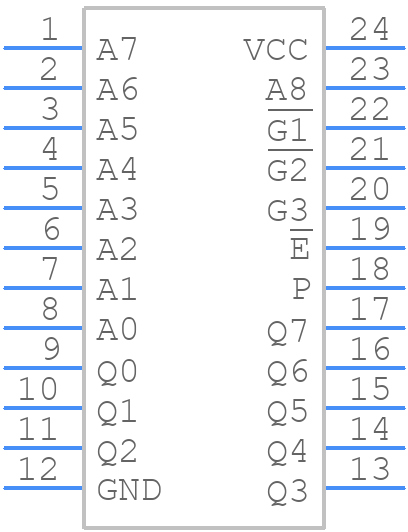

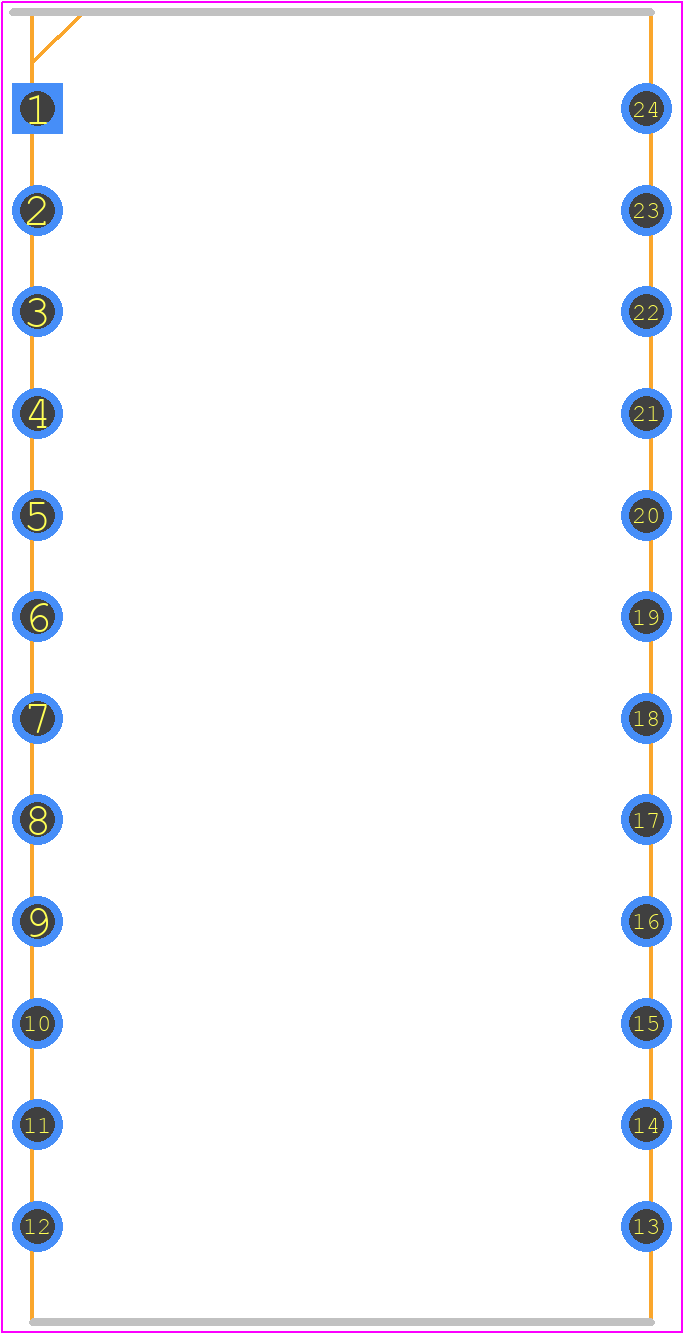

Use the download button to access the HM1-6642B/883 schematic symbol, PCB footprint, and 3D model.
