HM12-1A69-02 footprint, schematic symbol and 3D model by STANDEXMEDER

Symbol

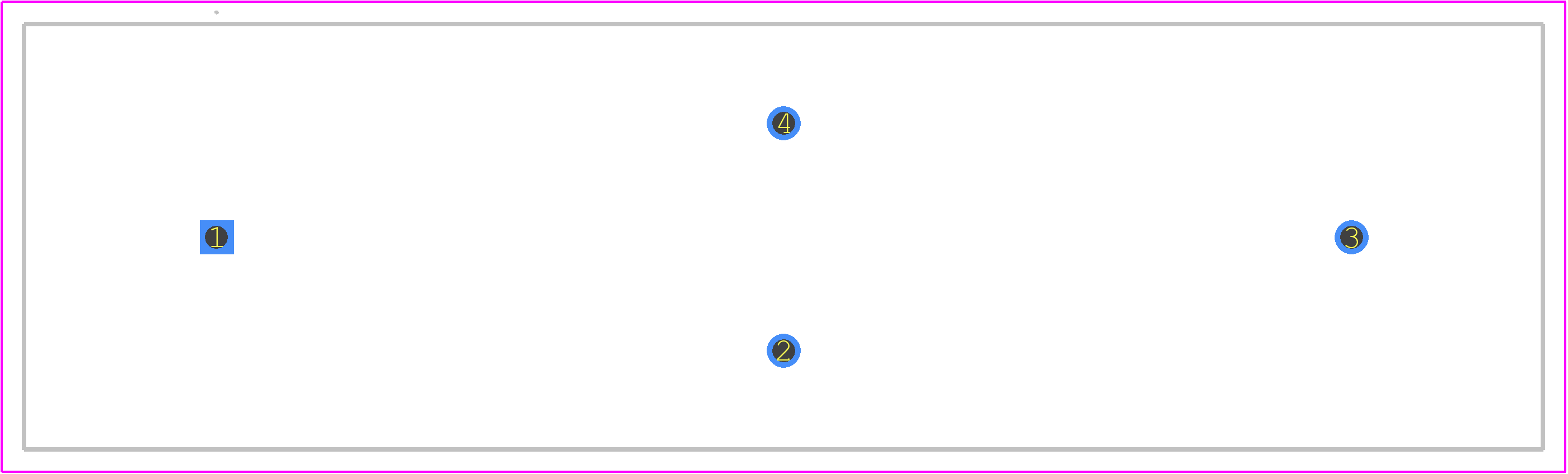

PCB Footprints

3D Models

HM12-1A69-02 Details

The recommended mounting orientation is with the terminals facing downwards to prevent moisture from entering the switch.
Yes, the HM12-1A69-02 is designed to withstand high-vibration environments, but it's essential to follow proper mounting and installation procedures to ensure reliable operation.
The maximum operating frequency of the HM12-1A69-02 is 100 Hz, but it's recommended to consult with the manufacturer for specific application requirements.
No, the HM12-1A69-02 is not designed for use in explosive or hazardous environments. It's essential to select a reed switch that meets the specific safety requirements for your application.
The HM12-1A69-02 has an operating temperature range of -40°C to 125°C. While it can tolerate high temperatures, it's crucial to consider the specific application requirements and potential derating factors.

Community Provided

System Verified

Community Approved

Use the download button to access the HM12-1A69-02 schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like HM12-, or try a keyword search, such as Reed Relays
