HM216514TTI5SE - Renesas Electronics

HM216514TTI5SE Details

• Manufacturer Part Number:

  HM216514TTI5SE

• Brand Name:

  Renesas

• Pbfree Code:

  Yes

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Obsolete

• Part Package Code:

  TSOP(2)

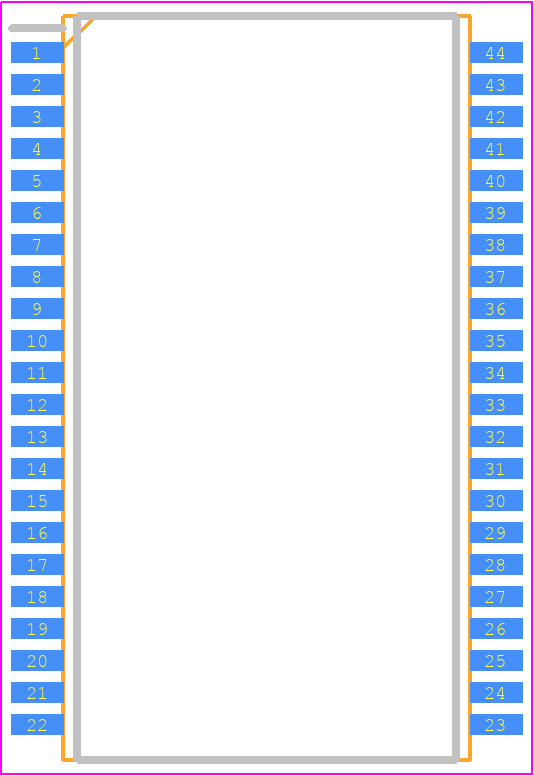

• Package Description:

  10.16 X 18.41 MM, 0.80 MM PITCH, ROHS COMPLIANT, PLASTIC, TSOP2-44

• Pin Count:

  44

• Manufacturer Package Code:

  PTSB0044GC

• ECCN Code:

  3A991.b.2.a

• HTS Code:

  8542.32.00.41

• Manufacturer:

  Renesas Electronics Corporation

• YTEOL:

  0

• Access Time-Max:

  55 ns

• JESD-30 Code:

  R-PDSO-G44

• Length:

  18.41 mm

• Memory Density:

  8388608 bit

• Memory IC Type:

  STANDARD SRAM

• Memory Width:

  16

• Number of Functions:

  1

• Number of Terminals:

  44

• Number of Words:

  524288 words

• Number of Words Code:

  512000

• Operating Mode:

  ASYNCHRONOUS

• Operating Temperature-Max:

  85 °C

• Operating Temperature-Min:

  -40 °C

• Organization:

  512KX16

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  TSOP2

• Package Shape:

  RECTANGULAR

• Package Style:

  SMALL OUTLINE, THIN PROFILE

• Parallel/Serial:

  PARALLEL

• Peak Reflow Temperature (Cel):

  NOT SPECIFIED

• Seated Height-Max:

  1.2 mm

• Supply Voltage-Max (Vsup):

  5.5 V

• Supply Voltage-Min (Vsup):

  4.5 V

• Supply Voltage-Nom (Vsup):

  5 V

• Surface Mount:

  YES

• Technology:

  CMOS

• Temperature Grade:

  INDUSTRIAL

• Terminal Form:

  GULL WING

• Terminal Pitch:

  0.8 mm

• Terminal Position:

  DUAL

• Time@Peak Reflow Temperature-Max (s):

  NOT SPECIFIED

• Width:

  10.16 mm
