HM514256ALZP-8 - HITACHI

HM514256ALZP-8 Details

• Manufacturer Part Number:

  HM514256ALZP-8

• Pbfree Code:

  No

• Part Life Cycle Code:

  Obsolete

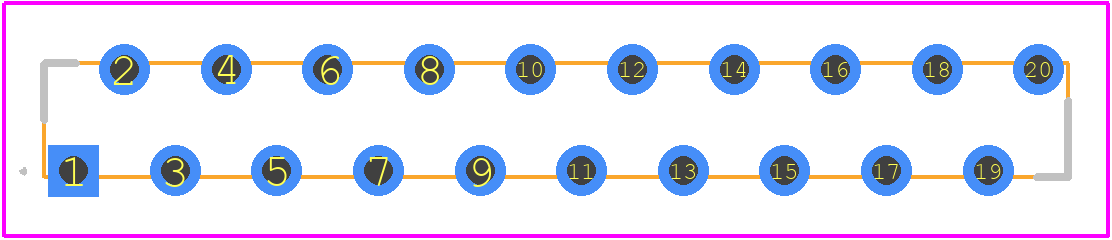

• Part Package Code:

  ZIP

• Package Description:

  0.400 INCH, PLASTIC, ZIP-20

• Pin Count:

  20

• ECCN Code:

  EAR99

• HTS Code:

  8542.32.00.02

• Manufacturer:

  Hitachi Ltd

• YTEOL:

  0

• Access Mode:

  FAST PAGE

• Access Time-Max:

  80 ns

• Additional Feature:

  RAS ONLY/CAS BEFORE RAS REFRESH

• I/O Type:

  COMMON

• JESD-30 Code:

  R-PZIP-T20

• JESD-609 Code:

  e0

• Length:

  25.61 mm

• Memory Density:

  1048576 bit

• Memory IC Type:

  FAST PAGE DRAM

• Memory Width:

  4

• Number of Functions:

  1

• Number of Ports:

  1

• Number of Terminals:

  20

• Number of Words:

  262144 words

• Number of Words Code:

  256000

• Operating Mode:

  ASYNCHRONOUS

• Operating Temperature-Max:

  70 °C

• Organization:

  256KX4

• Output Characteristics:

  3-STATE

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  ZIP

• Package Equivalence Code:

  ZIP20,.1

• Package Shape:

  RECTANGULAR

• Package Style:

  IN-LINE

• Qualification Status:

  Not Qualified

• Refresh Cycles:

  512

• Seated Height-Max:

  10.16 mm

• Standby Current-Max:

  0.0003 A

• Supply Current-Max:

  0.066 mA

• Supply Voltage-Max (Vsup):

  5.5 V

• Supply Voltage-Min (Vsup):

  4.5 V

• Supply Voltage-Nom (Vsup):

  5 V

• Surface Mount:

  NO

• Technology:

  CMOS

• Temperature Grade:

  COMMERCIAL

• Terminal Finish:

  TIN LEAD

• Terminal Form:

  THROUGH-HOLE

• Terminal Pitch:

  1.27 mm

• Terminal Position:

  ZIG-ZAG

• Width:

  2.85 mm
