HMC1013LP4ETR-R1 footprint, schematic symbol and 3D model by Analog Devices

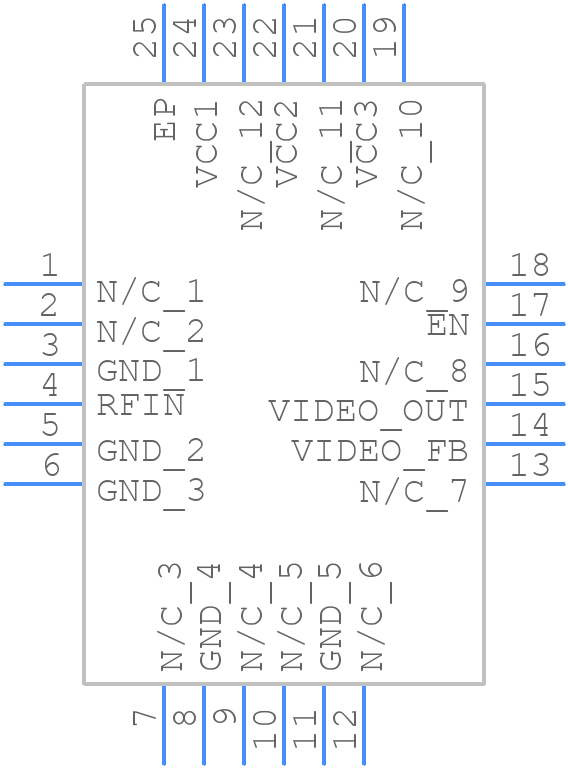

Symbol

click to zoom

PCB Footprints

HMC1013LP4ETR-R1 - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - HMC1010LP4ETR.

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for HMC1013LP4ETR-R1
Part Number HMC1013LP4ETR-R1
Manufacturer Analog Devices
Pin Count 25
Part Category Integrated Circuit
Package Category Quad Flat No-Lead
Footprint Name Quad Flat No-Lead - HMC1010LP4ETR.
Released Date Aug 25, 2026
Last Modified Date Aug 25, 2026 8:31 AM UTC
Pinout / Pin List Click Here (Member Only)

HMC1013LP4ETR-R1 Details

Manufacturer Part Number:
HMC1013LP4ETR-R1
Brand Name:
Analog Devices Inc
Pbfree Code:
No
Rohs Code:
Yes
Part Life Cycle Code:
Active
Pin Count:
24
Manufacturer Package Code:
CP-24-2
ECCN Code:
EAR99
HTS Code:
8542.39.00.01
Manufacturer:
Analog Devices Inc
YTEOL:
8.5
Consumer IC Type:
VIDEO AMPLIFIER
JESD-30 Code:
S-PQCC-N24
Length:
4 mm
Moisture Sensitivity Level:
1
Number of Channels:
1
Number of Functions:
1
Number of Terminals:
24
Operating Temperature-Max:
85 °C
Operating Temperature-Min:
-40 °C
Package Body Material:
PLASTIC/EPOXY
Package Code:
HVQCCN
Package Equivalence Code:
LCC24,.16SQ,20
Package Shape:
SQUARE
Package Style:
CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE
Seated Height-Max:
1 mm
Surface Mount:
YES
Terminal Form:
NO LEAD
Terminal Pitch:
0.5 mm
Terminal Position:
QUAD
Width:
4 mm

HMC1013LP4ETR-R1 Frequently Asked Questions (FAQs)

The recommended PCB layout for optimal performance can be found in the application note AN-0971, which provides guidelines for designing a PCB for the HMC1013LP4ETR-R1. It includes recommendations for component placement, routing, and grounding.
To ensure the device is properly biased, follow the recommended biasing circuit shown in the datasheet, and make sure to provide a stable voltage supply to the VCC and VEE pins. Additionally, ensure that the input and output signals are properly terminated and matched to the device's impedance.
The HMC1013LP4ETR-R1 is rated for operation from -40°C to 85°C. However, it's recommended to derate the device's performance at higher temperatures to ensure reliable operation.
Analog Devices provides a troubleshooting guide in the application note AN-0995, which covers common issues such as output stage instability, oscillations, and input/output mismatch. It also provides guidance on how to use the device's built-in diagnostic features to identify and resolve issues.
The HMC1013LP4ETR-R1 is a sensitive device and requires proper ESD protection to prevent damage. Analog Devices recommends using a human body model (HBM) ESD protection circuit with a minimum of 2 kV rating, and following proper handling and storage procedures to prevent ESD damage.
