HMC1021LP4ETR - Analog Devices

Description: RF Detector IC General Purpose 0Hz ~ 3.9GHz -62dBm ~ 8dBm ±1dB 24-VFQFN Exposed Pad

Download HMC1021LP4ETR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

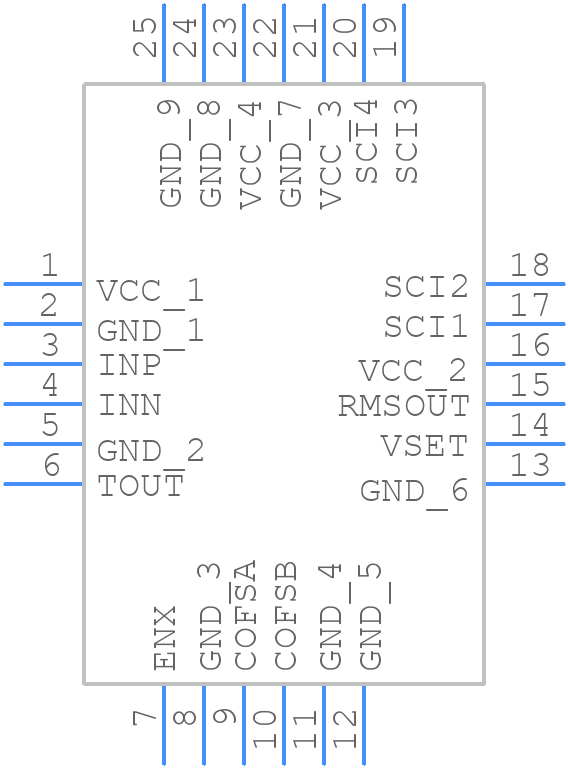

Symbol
HMC1021LP4ETR - Analog Devices - PCB symbol
click to zoom
PCB Footprints
HMC1021LP4ETR - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - HCP-24-2
click to zoom

HMC1021LP4ETR Details

  • Manufacturer Part Number:

    HMC1021LP4ETR

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Pin Count:

    24

  • Manufacturer Package Code:

    HCP-24-2

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    0

  • Characteristic Impedance:

    50 Ω

  • Construction:

    COMPONENT

  • Input Power-Max (CW):

    10 dBm

  • JESD-609 Code:

    e3

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Terminals:

    24

  • Operating Frequency-Max:

    3900 MHz

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Polarity:

    POSITIVE

  • Package Body Material:

    PLASTIC/EPOXY

  • Power Supplies:

    5 V

  • RF/Microwave Device Type:

    LINEAR DETECTOR

  • Surface Mount:

    YES

  • Terminal Finish:

    Matte Tin (Sn)

HMC1021LP4ETR Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the signal traces short and away from the power plane to minimize noise and radiation.
  • The HMC1021LP4ETR requires a single 3.3V power supply. Ensure the power supply is clean and well-regulated, and that the device is properly decoupled with 0.1uF and 10uF capacitors.
  • The HMC1021LP4ETR can operate up to 6 GHz, but the maximum operating frequency depends on the specific application and the quality of the PCB layout.
  • Minimize the noise figure by using a low-noise power supply, keeping the device away from noise sources, and using proper shielding and grounding techniques.
  • The recommended operating temperature range for the HMC1021LP4ETR is -40°C to 85°C. Operating outside this range may affect the device's performance and reliability.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

HMC1021LP4ETR Overview

Use the download button to access the HMC1021LP4ETR schematic symbol and PCB footprint.
To find more CAD model downloads similar to this part, try a partial part number search, like HMC10, or try a keyword search, such as RF/Microwave Detectors

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
