HMC1030LP5E - Analog Devices

Description: RF Detector Dual RMS pow Det , SE, DC - 3.9 GHz

Download HMC1030LP5E Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

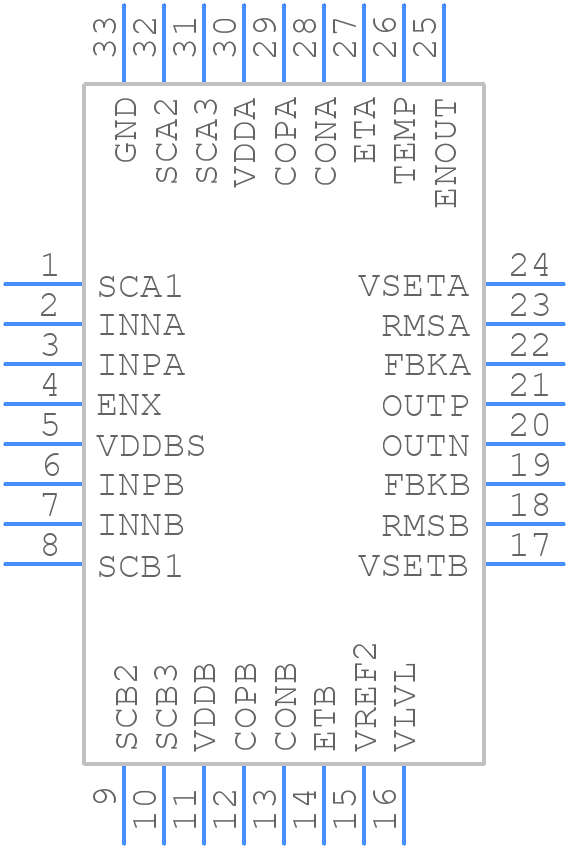

HMC1030LP5E - Analog Devices - PCB symbol
click to zoom
PCB Footprints
HMC1030LP5E - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - QFN
click to zoom
3D Models
HMC1030LP5E - Analog Devices - 3D model - Quad Flat No-Lead - QFN
click to zoom

HMC1030LP5E Details

  • Manufacturer Part Number:

    HMC1030LP5E

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    QFN-32

  • Pin Count:

    32

  • Manufacturer Package Code:

    HCP-32-1

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    0

  • JESD-30 Code:

    S-PQCC-N32

  • JESD-609 Code:

    e3

  • Length:

    5 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    32

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Seated Height-Max:

    1 mm

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Telecom IC Type:

    TELECOM CIRCUIT

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Width:

    5 mm

HMC1030LP5E Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the signal traces short and away from the power plane to minimize noise coupling.
  • The HMC1030LP5E requires a single 5V power supply. Ensure the power supply is clean and well-regulated, and that the device is properly decoupled with 0.1uF and 10uF capacitors.
  • The HMC1030LP5E can operate up to 3.2 GHz, but the maximum operating frequency depends on the specific application and the quality of the PCB layout.
  • Minimize the noise figure by using a low-noise power supply, keeping the signal traces short and shielded, and using a high-quality PCB material with low dielectric loss.
  • Yes, the HMC1030LP5E can be used in a differential configuration to improve common-mode rejection and reduce noise.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

HMC1030LP5E Overview

Use the download button to access the HMC1030LP5E schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like HMC10, or try a keyword search, such as Other Telecom ICs
