HMC1082LP4E - Analog Devices

Description: ANALOG DEVICES - HMC1082LP4E - RF Amplifier IC, 22 dB Gain, 5.5 GHz to 18 GHz, 5 V, HQFN-24

Download HMC1082LP4E Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

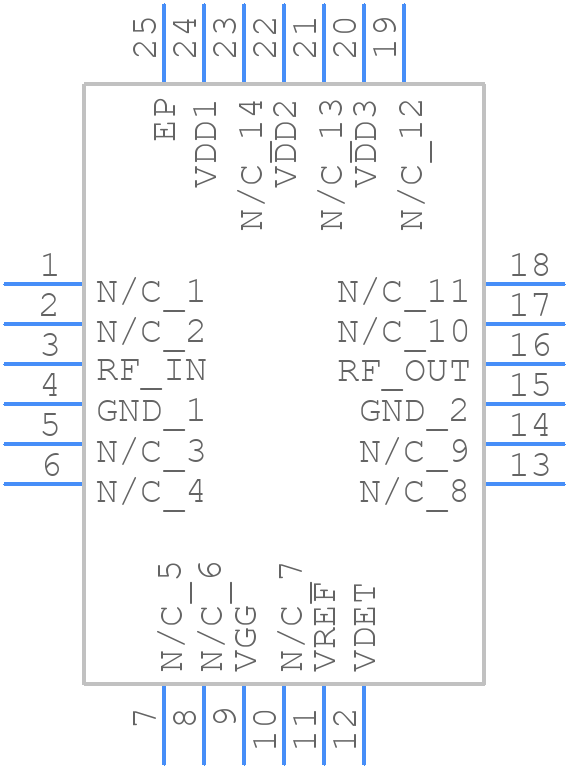

HMC1082LP4E - Analog Devices - PCB symbol
click to zoom
PCB Footprints
HMC1082LP4E - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - 24 pin QFN_2020
click to zoom
3D Models
HMC1082LP4E - Analog Devices - 3D model - Quad Flat No-Lead - 24 pin QFN_2020
click to zoom

HMC1082LP4E Details

  • Manufacturer Part Number:

    HMC1082LP4E

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Pin Count:

    24

  • Manufacturer Package Code:

    HCP-24-3

  • Country Of Origin:

    South Korea

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • Characteristic Impedance:

    50 Ω

  • Construction:

    COMPONENT

  • Gain:

    20 dB

  • Input Power-Max (CW):

    20 dBm

  • JESD-609 Code:

    e3

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Functions:

    1

  • Number of Terminals:

    24

  • Operating Frequency-Max:

    18000 MHz

  • Operating Frequency-Min:

    5500 MHz

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Equivalence Code:

    LCC24,.16SQ,20

  • Power Supplies:

    5 V

  • RF/Microwave Device Type:

    WIDE BAND MEDIUM POWER

  • Supply Current-Max:

    220 mA

  • Surface Mount:

    YES

  • Technology:

    PHEMT

  • Terminal Finish:

    Matte Tin (Sn)

  • VSWR-Max:

    1.31

HMC1082LP4E Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the signal traces short and away from the power plane to minimize noise coupling.
  • Ensure the Vcc and Vee pins are decoupled with 100nF capacitors to ground, and the Iset pin is connected to a 10kΩ resistor to ground. Also, ensure the input and output pins are properly terminated.
  • The maximum power dissipation of the HMC1082LP4E is 1.5W. Ensure proper heat sinking and thermal management to prevent overheating.
  • No, the HMC1082LP4E is not designed for switching power supply applications. It's intended for linear amplifier applications only.
  • Check for proper PCB layout, decoupling, and termination. Ensure the input and output impedances are matched, and the gain is set correctly. Also, check for any parasitic oscillations or feedback loops.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

HMC1082LP4E Overview

Use the download button to access the HMC1082LP4E schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like HMC10, or try a keyword search, such as RF/Microwave Amplifiers

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
