- Datasheet Download Datasheet
- Stock & Prices $ Price & Stock for HMC1094LP3ETR
- Part Number HMC1094LP3ETR
- Manufacturer Analog Devices
- Pin Count 17
- Part Category Integrated Circuit
- Package Category Quad Flat No-Lead
- Footprint Name Quad Flat No-Lead - 16 Lead 3x3mm -
- Released Date Jul 2, 2021
- Last Modified Date Mar 7, 2023 4:10 PM UTC
- Pinout / Pin List Click Here (Member Only)
HMC1094LP3ETR Details
-
Manufacturer Part Number:
HMC1094LP3ETR
-
Brand Name:
Analog Devices Inc
-
Pbfree Code:
No
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Active
-
Package Description:
QFN-16
-
Pin Count:
16
-
Manufacturer Package Code:
HCP-16-3
-
Country Of Origin:
South Korea
-
ECCN Code:
EAR99
-
HTS Code:
8542.39.00.01
-
Manufacturer:
Analog Devices Inc
HMC1094LP3ETR Frequently Asked Questions (FAQs)
-
A good PCB layout for the HMC1094LP3ETR involves keeping the input and output traces as short as possible, using a solid ground plane, and minimizing the use of vias. Additionally, it's recommended to use a low-impedance path for the output stage and to keep the power supply decoupling capacitors close to the device.
-
To ensure proper biasing, make sure to follow the recommended voltage supply and bias current settings outlined in the datasheet. Additionally, it's essential to use a stable voltage source and to decouple the power supply lines with capacitors to minimize noise and ripple.
-
The HMC1094LP3ETR is rated for operation from -40°C to 85°C. However, it's essential to note that the device's performance may degrade at higher temperatures, and it's recommended to derate the device's power dissipation accordingly.
-
Yes, the HMC1094LP3ETR can be used in switching power supply applications. However, it's essential to ensure that the device is properly biased and that the input and output stages are properly filtered to minimize noise and ripple.
-
To troubleshoot common issues with the HMC1094LP3ETR, start by verifying the device's biasing and power supply settings. Check for proper decoupling and filtering of the input and output stages. Also, ensure that the device is properly mounted and that the PCB layout is optimized for performance. If issues persist, consult the datasheet and application notes for further guidance.
Trust Checks
Community Provided
System Verified
Community Approved
HMC1094LP3ETR Overview

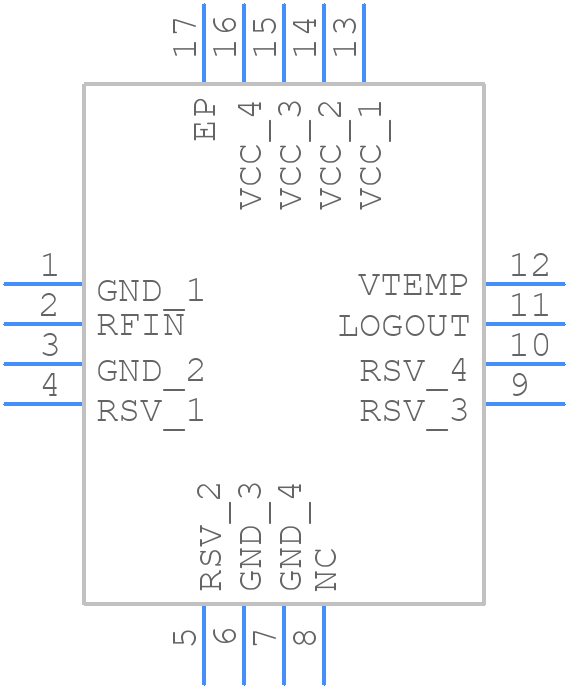

Use the download button to access the HMC1094LP3ETR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like HMC10,
or try a keyword search, such as Other Telecom ICs
About Analog Devices
Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries.
Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
