HMC1132PM5ETR - Analog Devices

Description: 27 GHz to 32 GHz, GaAs, pHEMT, MMIC Power Amplifier

Download HMC1132PM5ETR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

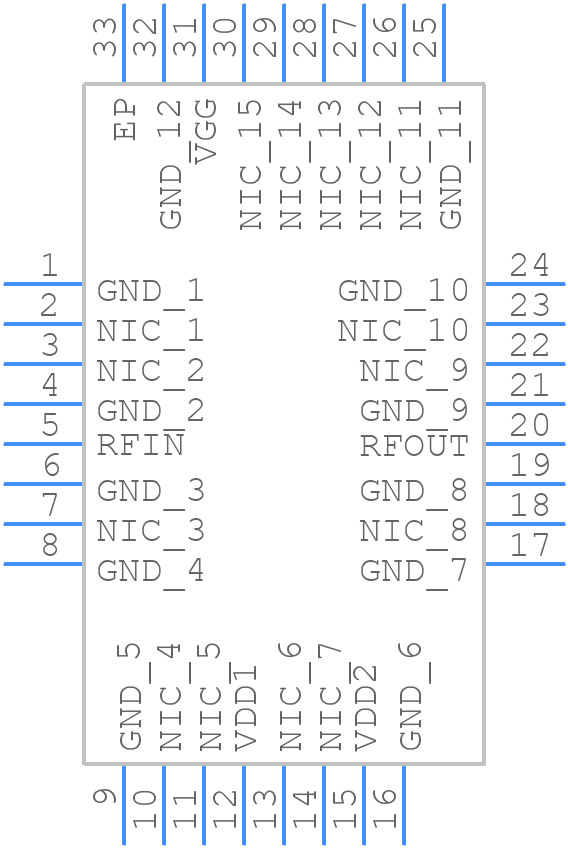

HMC1132PM5ETR - Analog Devices - PCB symbol
click to zoom
PCB Footprints
HMC1132PM5ETR - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - LFCSP_CAV(PREMOLD CAV)_2023-1
click to zoom
3D Models
HMC1132PM5ETR - Analog Devices - 3D model - Quad Flat No-Lead - LFCSP_CAV(PREMOLD CAV)_2023-1
click to zoom

HMC1132PM5ETR Details

  • Manufacturer Part Number:

    HMC1132PM5ETR

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Pin Count:

    32

  • Manufacturer Package Code:

    CG-32-2

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    3A001.B.2.D

  • HTS Code:

    8542.33.00.01

  • Date Of Intro:

    2018-09-25

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Characteristic Impedance:

    50 Ω

  • Construction:

    COMPONENT

  • Gain:

    21 dB

  • Input Power-Max (CW):

    18 dBm

  • Operating Frequency-Max:

    32000 MHz

  • Operating Frequency-Min:

    27000 MHz

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -55 °C

  • RF/Microwave Device Type:

    WIDE BAND MEDIUM POWER

  • VSWR-Max:

    7

HMC1132PM5ETR Frequently Asked Questions (FAQs)

  • A good PCB layout for the HMC1132PM5ETR involves keeping the signal traces as short as possible, using a solid ground plane, and minimizing the distance between the device and the antenna. It's also recommended to use a 50-ohm microstrip transmission line to connect the device to the antenna.
  • To ensure proper biasing, make sure to connect the VCC pin to a 5V power supply, and the VEE pin to a -5V power supply. Also, ensure that the bias current is set to the recommended value of 10mA to 20mA. Additionally, use a low-pass filter to filter out any noise on the bias lines.
  • The HMC1132PM5ETR can handle a maximum input power of +25 dBm. Exceeding this power limit can cause damage to the device. It's recommended to use an attenuator or a limiter to prevent excessive power from reaching the device.
  • To troubleshoot common issues, start by checking the PCB layout and ensuring that it meets the recommended layout guidelines. Next, verify that the device is properly biased and that the power supply is clean and stable. Also, check for any signs of damage or overheating. If the issue persists, try replacing the device or consulting the application notes and technical support resources provided by Analog Devices Inc.
  • Yes, the HMC1132PM5ETR can be used in a switching application, but it requires careful consideration of the switching frequency, rise and fall times, and the impact on the device's performance. It's recommended to use a switching frequency below 100 kHz and to ensure that the rise and fall times are slow enough to prevent damage to the device.
