HMC1169LP5ETR - Analog Devices

Description: Oscillator VCO 6460MHz to 7035MHz/ 12920MHz to 14070MHz 5V 32-Pin LFCSP EP SMD T/R

Download HMC1169LP5ETR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

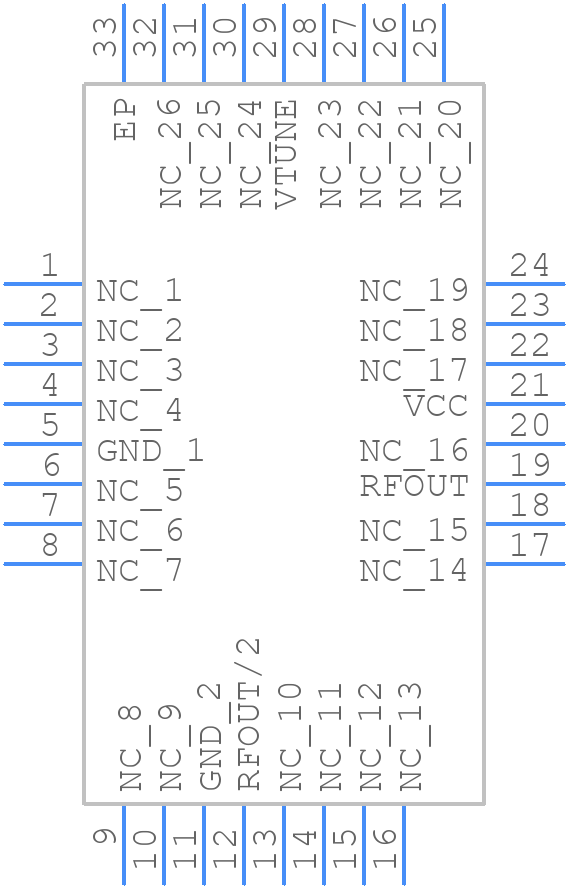

HMC1169LP5ETR - Analog Devices - PCB symbol
click to zoom
PCB Footprints
HMC1169LP5ETR - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - HCP-32- 1
click to zoom
3D Models
HMC1169LP5ETR - Analog Devices - 3D model - Quad Flat No-Lead - HCP-32- 1
click to zoom

HMC1169LP5ETR Details

  • Manufacturer Part Number:

    HMC1169LP5ETR

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    LFCSP, 32 PIN

  • Pin Count:

    32

  • Manufacturer Package Code:

    HCP-32-1

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Additional Feature:

    TR, 7 INCH; HALF O/P FREQUENCY ALSO AVAILABLE

  • Control Voltage-Max:

    13 V

  • Control Voltage-Min:

    2 V

  • Modulation Sensitivity:

    350 MHz/V

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Terminals:

    32

  • Offset Frequency:

    10 kHz

  • Operating Frequency-Max:

    14070 MHz

  • Operating Frequency-Min:

    12920 MHz

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Oscillator Type:

    VOLTAGE CONTROLLED OSCILLATOR

  • Output Power:

    11.5 dBm

  • Phase Noise:

    -86 dBc/Hz

  • Physical Dimension:

    5.1mm x 5.1mm x 0.9mm

  • Supply Current-Max:

    260 mA

  • Supply Voltage-Max:

    5.25 V

  • Supply Voltage-Min:

    4.75 V

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

HMC1169LP5ETR Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the signal traces short and away from the power plane to minimize noise coupling. Use a common mode choke or a ferrite bead to filter the power supply lines.
  • The HMC1169LP5ETR requires a single 5V power supply. Ensure the power supply is well-regulated and decoupled with 0.1uF and 10uF capacitors. The VCC pin should be connected to a 5V power supply, and the VEE pin should be connected to ground.
  • The HMC1169LP5ETR can operate up to 6 GHz, but the maximum operating frequency depends on the specific application and the quality of the PCB layout. In general, it's recommended to operate the device at frequencies below 4 GHz for optimal performance.
  • To minimize the noise figure, ensure the input signal is properly matched to the device, and the output is properly terminated. Use a low-noise power supply, and decouple the power supply lines with 0.1uF and 10uF capacitors. Keep the device away from noise sources and use shielding if necessary.
  • The maximum input power that the HMC1169LP5ETR can handle is +10 dBm. Exceeding this limit may cause damage to the device or affect its performance.
