HMC194AMS8E - Analog Devices

Description: Analog Devices HMC194AMS8E, RF Switch Circuit 3GHz 24dB Isolation 8-Pin MSOP

Download HMC194AMS8E Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

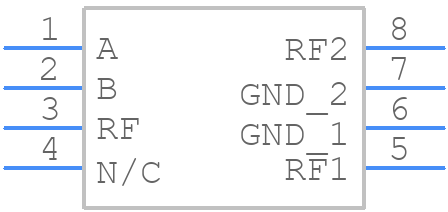

Symbol
HMC194AMS8E - Analog Devices - PCB symbol
click to zoom
PCB Footprints
HMC194AMS8E - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - HMC189AMS8ETR
click to zoom
3D Models
HMC194AMS8E - Analog Devices - 3D model - Small Outline Packages - HMC189AMS8ETR
click to zoom

HMC194AMS8E Details

  • Manufacturer Part Number:

    HMC194AMS8E

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    ROHS COMPLIANT, ULTRA SMALL, PLASTIC, SMT, MSOP-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    HRM-8-1

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • 1dB Compression Point:

    28 dBm

  • Additional Feature:

    CMOS COMPATIBLE, HIGH ISOLATION

  • Characteristic Impedance:

    50 Ω

  • Construction:

    COMPONENT

  • Input Power-Max (CW):

    27 dBm

  • Insertion Loss-Max:

    1.1 dB

  • Isolation-Min:

    24 dB

  • JESD-609 Code:

    e3

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • On Time-Nom:

    0.02 µs

  • Operating Frequency-Max:

    3000 MHz

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Port Termination:

    ABSORPTIVE

  • RF/Microwave Device Type:

    SPDT

  • Surface Mount:

    YES

  • Technology:

    GAAS

  • Terminal Finish:

    Matte Tin (Sn)

  • VSWR-Max:

    1.11

HMC194AMS8E Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the signal traces short and away from the power plane to minimize noise and radiation.
  • The HMC194AMS8E requires a single positive supply voltage (Vcc) between 3.3V and 5V. Ensure the voltage supply is clean and regulated, and decouple the power pins with 0.1uF and 10uF capacitors.
  • The HMC194AMS8E can handle up to 1W of power. However, it's recommended to derate the power handling to 0.5W to ensure reliable operation and minimize thermal issues.
  • The HMC194AMS8E has a serial interface (SPI) for control and data transfer. Use a microcontroller or FPGA with a compatible SPI interface, and ensure the clock frequency is within the recommended range (10-40 MHz).
  • The typical settling time for the HMC194AMS8E is around 10-20 microseconds, depending on the frequency and amplitude of the input signal.
