HMC199AMS8E - Analog Devices

Description: RF Switch ICs 2x2 Active Switch Matrix

Download HMC199AMS8E Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

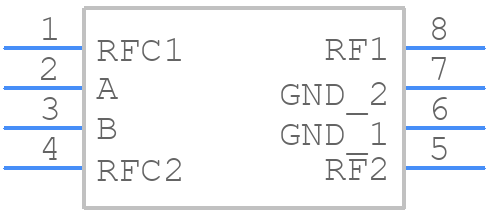

HMC199AMS8E - Analog Devices - PCB symbol
click to zoom
PCB Footprints
HMC199AMS8E - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - HMC199AMS8E
click to zoom
3D Models
HMC199AMS8E - Analog Devices - 3D model - Small Outline Packages - HMC199AMS8E
click to zoom

HMC199AMS8E Details

  • Manufacturer Part Number:

    HMC199AMS8E

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    SOP-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    RM-8

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • 1dB Compression Point:

    28 dBm

  • Additional Feature:

    CMOS COMPATIBLE

  • Characteristic Impedance:

    50 Ω

  • Construction:

    COMPONENT

  • Input Power-Max (CW):

    29.29 dBm

  • Insertion Loss-Max:

    1 dB

  • Isolation-Min:

    17 dB

  • JESD-609 Code:

    e3

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Functions:

    2

  • Number of Terminals:

    8

  • On Time-Nom:

    0.04 µs

  • Operating Frequency-Max:

    2500 MHz

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Port Termination:

    ABSORPTIVE

  • RF/Microwave Device Type:

    SPDT

  • Surface Mount:

    YES

  • Technology:

    GAAS

  • Terminal Finish:

    Matte Tin (Sn)

  • VSWR-Max:

    1.07

HMC199AMS8E Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the signal traces short and away from the power plane to minimize noise and radiation.
  • The HMC199AMS8E requires a single positive supply voltage (Vcc) between 3.3V and 5V. Ensure the voltage supply is clean and well-regulated, and decouple the power pins with 0.1uF and 10uF capacitors.
  • The HMC199AMS8E can operate up to 18 GHz, but the maximum operating frequency depends on the specific application and the quality of the PCB layout.
  • The HMC199AMS8E has a serial interface that can be connected to a microcontroller or FPGA using a SPI or I2C interface. Ensure the interface voltage levels are compatible, and use level shifters if necessary.
  • The typical current consumption of the HMC199AMS8E is around 50mA, but this can vary depending on the operating frequency, voltage supply, and other factors.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

HMC199AMS8E Overview

Use the download button to access the HMC199AMS8E schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like HMC19, or try a keyword search, such as RF/Microwave Switches

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
