- Stock & Prices $ Price & Stock for HMC199MS8ETR
- Part Number HMC199MS8ETR
- Manufacturer Analog Devices
- Pin Count 8
- Part Category Integrated Circuit
- Package Category Small Outline Packages
- Footprint Name Small Outline Packages - MSOP 8_
- Released Date Feb 22, 2021
- Last Modified Date Mar 7, 2023 4:10 PM UTC
- Pinout / Pin List Click Here (Member Only)
HMC199MS8ETR Details
-
Manufacturer Part Number:
HMC199MS8ETR
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Obsolete
-
Package Description:
ROHS COMPLIANT, ULTRA SMALL, PLASTIC, SMT, MSOP-8
-
ECCN Code:
EAR99
-
HTS Code:
8536.50.70.00
-
Manufacturer:
Analog Devices Inc
-
YTEOL:
0
-
1dB Compression Point:
23 dBm
-
Additional Feature:
CMOS/TTL COMPATIBLE
-
Characteristic Impedance:
50 Ω
HMC199MS8ETR Frequently Asked Questions (FAQs)
-
A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the signal traces short and away from noise sources. Use a common mode choke or a ferrite bead to filter the power supply.
-
The HMC199MS8ETR requires a single 5V power supply. Ensure the power supply is clean and well-regulated. A 10uF capacitor in parallel with a 100nF capacitor between Vcc and GND is recommended for decoupling.
-
The HMC199MS8ETR can operate up to 6 GHz, but the maximum operating frequency depends on the specific application and the quality of the PCB layout.
-
The HMC199MS8ETR has a serial interface that can be connected to a microcontroller or FPGA using a SPI or I2C interface. Ensure the interface is properly configured and the clock speed is within the recommended range.
-
The typical current consumption of the HMC199MS8ETR is around 50mA, but this can vary depending on the operating frequency and the specific application.
Trust Checks
Community Provided
System Verified
Community Approved
HMC199MS8ETR Overview

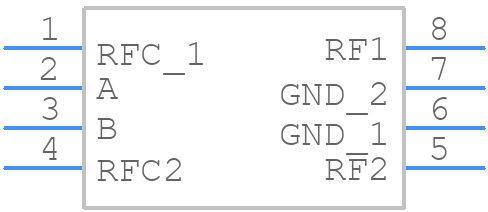

Use the download button to access the HMC199MS8ETR schematic symbol, PCB footprint, and 3D model.
