HMC204MS8GETR - Analog Devices

Description: Signal Conditioning Passive SMT Freq. Doubler, 4 - 8 GHz Fin

Download HMC204MS8GETR Model

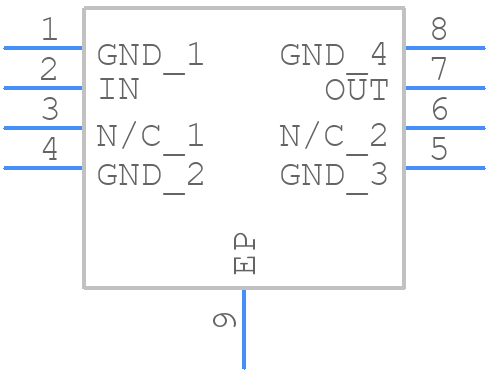

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
HMC204MS8GETR - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - HMC204
click to zoom
3D Models
HMC204MS8GETR - Analog Devices  - 3D model - Small Outline Packages - HMC204
click to zoom

HMC204MS8GETR Details

  • Manufacturer Part Number:

    HMC204MS8GETR

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Pin Count:

    8

  • Manufacturer Package Code:

    HRH-8-1

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    0

  • Characteristic Impedance:

    50 Ω

  • Construction:

    COMPONENT

  • Conversion Loss-Max:

    22 dB

  • Input Power-Max (CW):

    27 dBm

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Terminals:

    8

  • Operating Frequency-Max:

    8000 MHz

  • Operating Frequency-Min:

    4000 MHz

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Equivalence Code:

    TSSOP8,.19

  • RF/Microwave Device Type:

    FREQUENCY DOUBLER

  • Surface Mount:

    YES

  • Technology:

    GAAS

HMC204MS8GETR Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate power plane is recommended. The device should be placed near the center of the board, and the input and output traces should be kept short and shielded.
  • The device requires a single 5V power supply, and the VCC pin should be decoupled with a 0.1uF capacitor to ground. The VEE pin should be connected to a quiet analog ground.
  • The maximum input power is +10dBm, and exceeding this may cause damage to the device. Input power should be attenuated if necessary to prevent damage.
  • The device has a parallel interface, and the output data can be directly connected to a microcontroller or FPGA. The output data is in 8-bit binary format, and the clock input should be synchronized with the microcontroller or FPGA clock.
  • The typical current consumption is 120mA, but this can vary depending on the operating frequency and input power level.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

HMC204MS8GETR Overview

Use the download button to access the HMC204MS8GETR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like HMC20, or try a keyword search, such as RF/Microwave Frequency Multipliers

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.

Parts related to HMC204MS8GETR

Showing 0 results

HMC204MS8GETR Alternates

Showing results

Image Part Number Model
Part Image HMC204MS8GE Analog Devices Inc

Frequency Doubler, 4000MHz Min, 8000MHz Max, 22dB Conversion Loss-Max, GAAS
