A good PCB layout for the HMC208AMS8TR involves keeping the signal paths short, using a solid ground plane, and minimizing the distance between the device and the antenna. It's also recommended to use a 4-layer PCB with a dedicated layer for the RF signal, a layer for the ground plane, and two layers for the digital signals.
To ensure proper biasing, make sure to follow the recommended voltage supply and current requirements specified in the datasheet. The device requires a single 5V supply, and the recommended operating current is 350mA. Also, ensure that the voltage supply is clean and free of noise to prevent any performance degradation.
The HMC208AMS8TR is rated to operate over a temperature range of -40°C to +85°C. However, it's recommended to operate the device within a temperature range of 0°C to +70°C for optimal performance and reliability.
To troubleshoot common issues with the HMC208AMS8TR, start by checking the PCB layout and ensuring that it meets the recommended layout guidelines. Also, verify that the device is properly biased and that the voltage supply is clean and free of noise. If the issue persists, check the antenna design and ensure that it is properly matched to the device. Finally, consult the datasheet and application notes for troubleshooting guides and FAQs.
The recommended antenna design for the HMC208AMS8TR is a quarter-wave monopole antenna with a length of approximately 17.5mm. The antenna should be designed to operate at the desired frequency range and should be properly matched to the device to ensure optimal performance.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
HMC208AMS8TR Overview

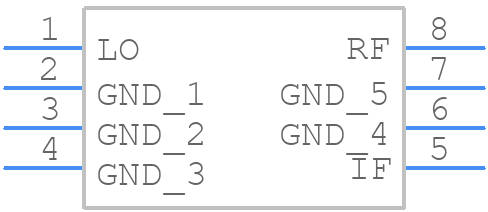

Use the download button to access the HMC208AMS8TR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like HMC20,
or try a keyword search, such as RF/Microwave Mixers
About Analog Devices
Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries.
Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
