HMC218BMS8GE - Analog Devices

Description: RF Mixer Double-Balanced Mixer, 4.5 6 GHz

Download HMC218BMS8GE Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

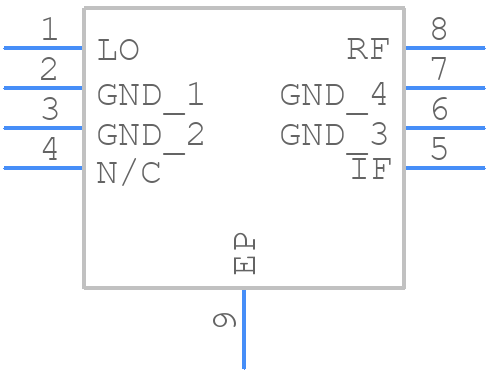

HMC218BMS8GE - Analog Devices - PCB symbol
click to zoom
PCB Footprints
HMC218BMS8GE - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - HMC218BMS8GE
click to zoom
3D Models
HMC218BMS8GE - Analog Devices - 3D model - Small Outline Packages - HMC218BMS8GE
click to zoom

HMC218BMS8GE Details

  • Manufacturer Part Number:

    HMC218BMS8GE

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    SOP-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    HRH-8-1

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • Characteristic Impedance:

    50 Ω

  • Construction:

    COMPONENT

  • Conversion Loss-Max:

    8.5 dB

  • Input Power-Max (CW):

    13 dBm

  • JESD-609 Code:

    e3

  • Operating Frequency-Max:

    8000 MHz

  • Operating Frequency-Min:

    3500 MHz

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • RF/Microwave Device Type:

    DOUBLE BALANCED

  • Terminal Finish:

    Matte Tin (Sn)

HMC218BMS8GE Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and thermal vias is recommended. Ensure good thermal conductivity and heat dissipation by using a heat sink or thermal pad.
  • Use a low-noise power supply with a high-quality decoupling capacitor (e.g., 100nF) close to the device's power pins. Add additional decoupling capacitors (e.g., 10uF) near the device's power pins for further noise reduction.
  • The internal voltage regulators are set to 1.2V and 3.3V by default. For optimal performance, ensure the input voltage is within the recommended range (3.3V to 5.5V) and adjust the regulators according to your specific application requirements.
  • The device can be clocked externally or internally. For external clocking, connect a clock source to the CLKIN pin. For internal clocking, use the internal oscillator and configure the clock divider and multiplier according to your application's requirements.
  • Handle the device with ESD-protective equipment and follow proper ESD handling procedures to prevent damage. Use ESD-protective packaging and storage to prevent damage during transportation and storage.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

HMC218BMS8GE Overview

Use the download button to access the HMC218BMS8GE schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like HMC21, or try a keyword search, such as RF/Microwave Mixers

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
