- Datasheet Download Datasheet
- Stock & Prices $ Price & Stock for HMC241LP3
- Part Number HMC241LP3
- Manufacturer Analog Devices
- Pin Count 17
- Part Category Integrated Circuit
- Package Category Quad Flat No-Lead
- Footprint Name Quad Flat No-Lead - 16-QFN (3x3)_2023-2
- Released Date May 23, 2023
- Last Modified Date May 24, 2023 6:25 AM UTC
- Pinout / Pin List Click Here (Member Only)
HMC241LP3 Details
-
Manufacturer Part Number:
HMC241LP3
-
Brand Name:
Analog Devices Inc
-
Pbfree Code:
No
-
Part Life Cycle Code:
Obsolete
-
Package Description:
3 X 3 MM, PLASTIC, LEADLESS, SMT, 16 PIN
-
Pin Count:
16
-
Manufacturer Package Code:
HCP-16-3
-
ECCN Code:
EAR99
-
HTS Code:
8542.39.00.01
-
Manufacturer:
Analog Devices Inc
-
YTEOL:
0
HMC241LP3 Frequently Asked Questions (FAQs)
-
A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the signal traces short and away from the power plane to minimize noise and radiation.
-
The HMC241LP3 requires a single +5V power supply. Ensure the power supply is well-regulated and decoupled with 0.1uF and 10uF capacitors. The Vcc pin should be connected to a clean +5V power supply, and the Vee pin should be connected to a quiet ground.
-
The HMC241LP3 can operate up to 2.5 GHz, but the maximum frequency of operation depends on the specific application and the quality of the PCB layout. In general, it's recommended to operate the device at frequencies below 1.5 GHz for optimal performance.
-
To minimize the noise figure, ensure the input signal is properly matched to the device, and the output is properly terminated. Use a low-noise power supply, and keep the device away from noise sources. Additionally, use a high-quality PCB material and ensure the PCB is well-shielded.
-
The recommended operating temperature range for the HMC241LP3 is -40°C to +85°C. However, the device can operate up to +125°C with reduced performance and reliability.
Trust Checks
Community Provided
System Verified
Community Approved
HMC241LP3 Overview

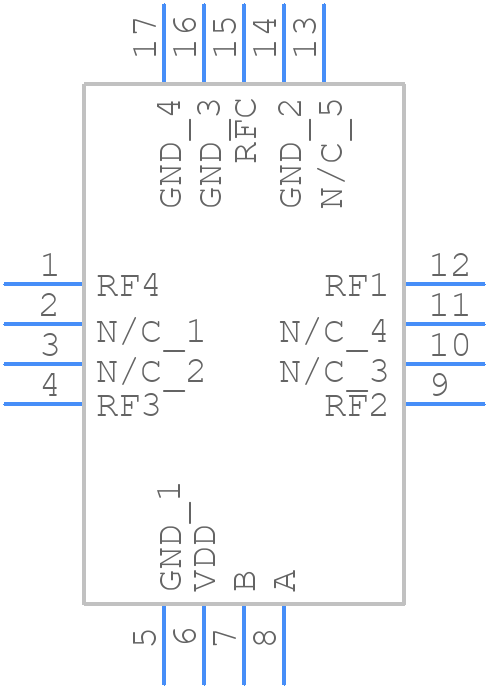

Use the download button to access the HMC241LP3 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like HMC24,
or try a keyword search, such as RF/Microwave Switches
