HMC241LP3E - Analog Devices

Description: Analog Devices Hittite HMC241LP3E, RF Switch Circuit 4GHz Single SP4T 25dB Isolation CMOS/TTL Maximum of 5 V dc 16-Pin

Download HMC241LP3E Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

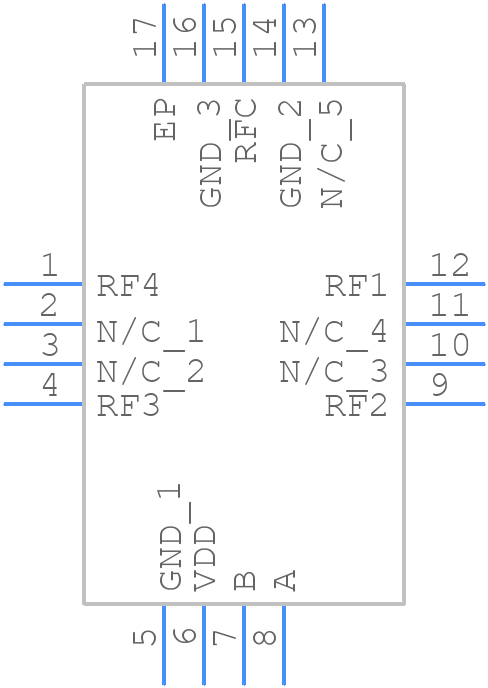

HMC241LP3E - Analog Devices - PCB symbol
click to zoom
PCB Footprints
HMC241LP3E - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - QFN_16-
click to zoom
3D Models
HMC241LP3E - Analog Devices - 3D model - Quad Flat No-Lead - QFN_16-
click to zoom

HMC241LP3E Details

  • Manufacturer Part Number:

    HMC241LP3E

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    3 X 3 MM, ROHS COMPLIANT, PLASTIC, LEADLESS, SMT, 16 PIN

  • Pin Count:

    16

  • Manufacturer Package Code:

    HCP-16-3

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    0

  • 1dB Compression Point:

    26 dBm

  • Additional Feature:

    CMOS COMPATIBLE

  • Characteristic Impedance:

    50 Ω

  • Construction:

    COMPONENT

  • Input Power-Max (CW):

    26.99 dBm

  • Insertion Loss-Max:

    1.5 dB

  • Isolation-Min:

    25 dB

  • JESD-609 Code:

    e3

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • On Time-Nom:

    0.1 µs

  • Operating Frequency-Max:

    4000 MHz

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Port Termination:

    ABSORPTIVE

  • Power Supplies:

    5 V

  • RF/Microwave Device Type:

    SP4T

  • Supply Current-Max:

    5 mA

  • Surface Mount:

    YES

  • Technology:

    GAAS

  • Terminal Finish:

    Matte Tin (Sn)

  • VSWR-Max:
