HMC245AQS16E - Analog Devices

Description: IC RF SWITCH SP3T 3.5GHZ 16QSOP

Download HMC245AQS16E Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

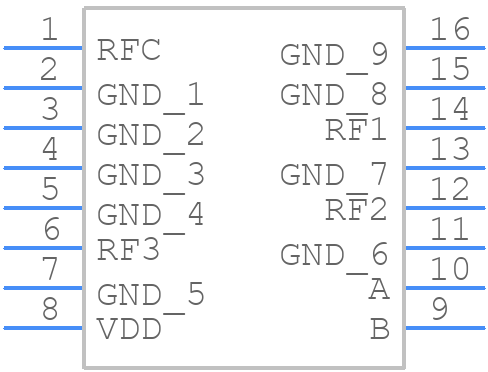

Symbol
HMC245AQS16E - Analog Devices - PCB symbol
click to zoom
PCB Footprints
HMC245AQS16E - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - RQ-16
click to zoom
3D Models
HMC245AQS16E - Analog Devices - 3D model - Small Outline Packages - RQ-16
click to zoom

HMC245AQS16E Details

  • Manufacturer Part Number:

    HMC245AQS16E

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    ROHS COMPLIANT, PLASTIC, SMT, QSOP-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    RQ-16

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • 1dB Compression Point:

    28 dBm

  • Additional Feature:

    CMOS COMPATIBLE

  • Characteristic Impedance:

    50 Ω

  • Construction:

    COMPONENT

  • Input Power-Max (CW):

    28.51 dBm

  • Insertion Loss-Max:

    1.5 dB

  • Isolation-Min:

    26 dB

  • JESD-609 Code:

    e3

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • On Time-Nom:

    0.15 µs

  • Operating Frequency-Max:

    3500 MHz

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Port Termination:

    ABSORPTIVE

  • Power Supplies:

    5 V

  • RF/Microwave Device Type:

    SP3T

  • Supply Current-Max:

    6 mA

  • Surface Mount:

    YES

  • Technology:

    GAAS

  • Terminal Finish:

    Matte Tin (Sn)

  • VSWR-Max:

    1.15

HMC245AQS16E Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and thermal vias is recommended. Ensure good thermal conductivity by using thermal pads and a heat sink if necessary.
  • Use a combination of high-frequency and low-frequency decoupling capacitors (e.g., 100nF and 10uF) placed close to the device's power pins. Ensure the power supply lines are well-filtered and regulated.
  • The HMC245AQS16E uses a SPI interface for programming. Use a 3-wire SPI interface with a clock frequency up to 50 MHz. Refer to the datasheet for specific protocol details.
  • Use a shielded enclosure, keep signal lines short, and use EMI filters or common-mode chokes on I/O lines. Ensure good grounding and decoupling to minimize radiation.
  • The device is rated for operation up to 125°C junction temperature. Derate the device's power consumption and clock frequency as temperature increases to prevent thermal shutdown.
