HMC311LP3ETR - Analog Devices

Description: P1dB Output Power: +15.5 dBm Output IP3: +32 dBm Gain: 14.5 dB 50 Ohm I/O’s 16 Lead 3x3mm SMT Package: 9mm2

Download HMC311LP3ETR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

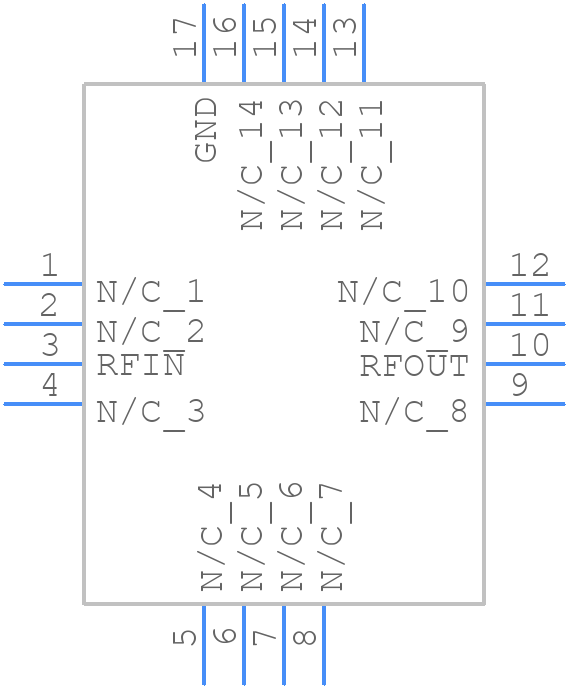

HMC311LP3ETR - Analog Devices - PCB symbol
click to zoom
PCB Footprints
HMC311LP3ETR - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - (CP-16-50)
click to zoom
3D Models
HMC311LP3ETR - Analog Devices - 3D model - Quad Flat No-Lead - (CP-16-50)
click to zoom

HMC311LP3ETR Details

  • Manufacturer Part Number:

    HMC311LP3ETR

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    3 X 3 MM, 1 MM HEIGHT, ROHS COMPLIANT, PLASTIC, SMT, QFN-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    CP-16-50

  • Country Of Origin:

    South Korea

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    0

  • Characteristic Impedance:

    50 Ω

  • Construction:

    COMPONENT

  • Gain:

    12 dB

  • Input Power-Max (CW):

    10 dBm

  • JESD-609 Code:

    e3

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Frequency-Max:

    6000 MHz

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Equivalence Code:

    LCC16,.12SQ,20

  • Power Supplies:

    5 V

  • RF/Microwave Device Type:

    WIDE BAND LOW POWER

  • Supply Current-Max:

    74 mA

  • Surface Mount:

    YES

  • Technology:

    GAAS

  • Terminal Finish:

    Matte Tin (Sn) - annealed

HMC311LP3ETR Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the signal traces short and away from the power plane to minimize noise coupling.
  • Ensure the Vcc and Vee pins are decoupled with 100nF capacitors and that the bias voltage is set to the recommended 5V. Also, ensure the input and output impedances are matched to 50 ohms.
  • The HMC311LP3ETR can handle up to 1W of power, but it's recommended to derate the power handling to 0.5W to ensure reliable operation.
  • Check the PCB layout for any signs of resonance or oscillation. Ensure the input and output impedances are matched, and the bias voltage is set correctly. Also, check for any signs of overheating or thermal issues.
  • Yes, the HMC311LP3ETR can be used in a push-pull configuration, but ensure the input and output impedances are matched, and the bias voltage is set correctly to avoid any oscillations or instability.
