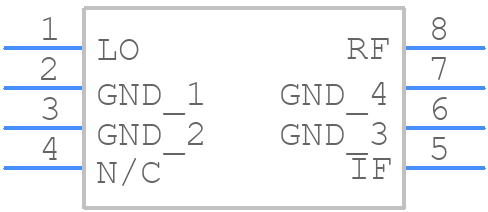

HMC316MS8E - Analog Devices

HMC316MS8E Frequently Asked Questions (FAQs)

• What is the recommended PCB layout and thermal management for optimal performance?
  A 4-layer PCB with a solid ground plane and thermal vias is recommended. Ensure good thermal conductivity by using a thermal pad and connecting it to a heat sink or a metal plate.
• How do I optimize the output power and efficiency of the HMC316MS8E?
  Optimize the output power and efficiency by adjusting the input power, bias voltage, and load impedance. Use a load-pull analysis to find the optimal load impedance for maximum power and efficiency.
• What are the recommended input and output matching networks for the HMC316MS8E?
  Use a conjugate match at the input and output ports to achieve maximum power transfer. A 50-ohm system is recommended, with a series inductor and shunt capacitor at the input, and a series capacitor and shunt inductor at the output.
• How do I prevent overheating and thermal shutdown of the HMC316MS8E?
  Ensure good thermal management by using a heat sink, thermal pad, and thermal vias. Monitor the device temperature and reduce the input power or bias voltage if the temperature exceeds 150°C.
• What are the ESD protection and handling precautions for the HMC316MS8E?
  Handle the device with ESD-protective equipment and follow proper ESD handling procedures. Use an ESD wrist strap or mat, and ensure the device is stored in an ESD-protective package.
