- Datasheet Download Datasheet
- Stock & Prices $ Price & Stock for HMC322ALP4ETR
- Part Number HMC322ALP4ETR
- Manufacturer Analog Devices
- Pin Count 25
- Part Category Integrated Circuit
- Package Category Quad Flat No-Lead
- Footprint Name Quad Flat No-Lead - 24 pin QFN_2020
- Released Date Jan 4, 2021
- Last Modified Date Mar 7, 2023 4:10 PM UTC
- Pinout / Pin List Click Here (Member Only)
HMC322ALP4ETR Details
-
Manufacturer Part Number:
HMC322ALP4ETR
-
Brand Name:
Analog Devices Inc
-
Pbfree Code:
No
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Active
-
Package Description:
QFN-24
-
Pin Count:
24
-
Manufacturer Package Code:
HCP-24-2
-
ECCN Code:
EAR99
-
HTS Code:
8542.39.00.01
-
Manufacturer:
Analog Devices Inc
HMC322ALP4ETR Frequently Asked Questions (FAQs)
-
A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the signal traces short and away from the power plane to minimize noise coupling.
-
The HMC322ALP4ETR requires a single 3.3V power supply. Ensure the power supply is clean and well-regulated, and that the device is properly decoupled with 0.1uF and 10uF capacitors.
-
The HMC322ALP4ETR can operate up to 6 GHz, but the maximum operating frequency depends on the specific application and the quality of the PCB layout.
-
The HMC322ALP4ETR has a maximum junction temperature of 150°C. Ensure good airflow around the device, and consider using a heat sink or thermal pad if the device is expected to operate at high temperatures.
-
The HMC322ALP4ETR has internal ESD protection, but additional external protection may be necessary depending on the application. Consider using TVS diodes or other ESD protection devices to protect the device from electrostatic discharge.
Trust Checks
Community Provided
System Verified
Community Approved
HMC322ALP4ETR Overview

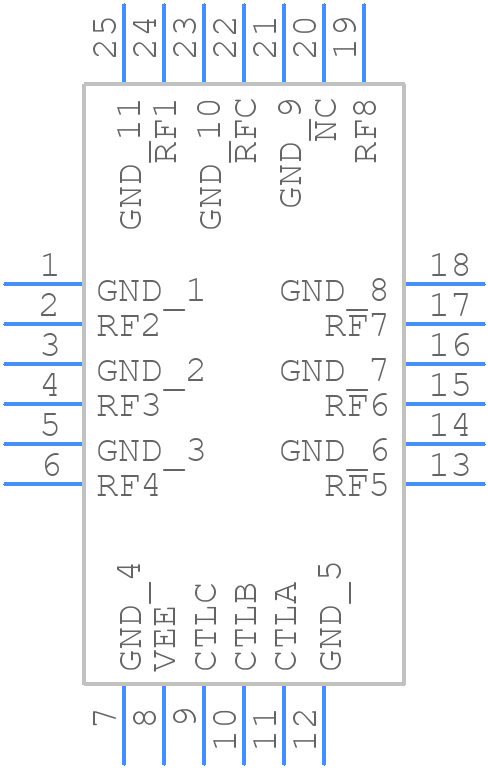

Use the download button to access the HMC322ALP4ETR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like HMC32,
or try a keyword search, such as RF/Microwave Switches
About Analog Devices
Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries.
Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
