HMC358MS8GETR - Analog Devices

Description: VCO Oscillators MMIC VCO w/ Buffer Amp, 5.8 - 6.8 GHz

Download HMC358MS8GETR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

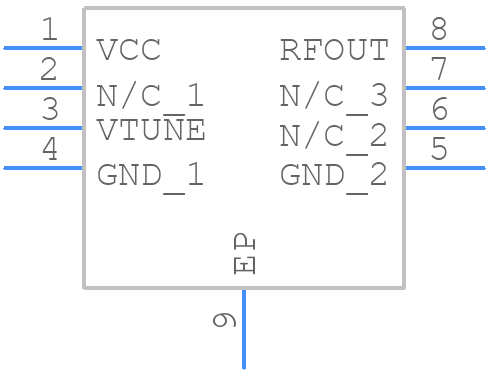

HMC358MS8GETR - Analog Devices - PCB symbol
click to zoom
PCB Footprints
HMC358MS8GETR - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - MS_8
click to zoom
3D Models
HMC358MS8GETR - Analog Devices - 3D model - Small Outline Packages - MS_8
click to zoom

HMC358MS8GETR Details

  • Manufacturer Part Number:

    HMC358MS8GETR

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    ROHS COMPLIANT, PLASTIC, SMT, MSOP8G, 8 PIN

  • Pin Count:

    8

  • Manufacturer Package Code:

    HRH-8-1

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Additional Feature:

    TAPE AND REEL

  • Control Voltage-Max:

    10 V

  • JESD-609 Code:

    e3

  • Modulation Sensitivity:

    150 MHz/V

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Terminals:

    8

  • Offset Frequency:

    100 kHz

  • Operating Frequency-Max:

    6800 MHz

  • Operating Frequency-Min:

    5800 MHz

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Oscillator Type:

    VOLTAGE CONTROLLED OSCILLATOR

  • Output Power:

    8 dBm

  • Phase Noise:

    -110 dBc/Hz

  • Physical Dimension:

    3.1mm x 3.1mm x 1.1mm

  • Supply Current-Max:

    100 mA

  • Supply Voltage-Max:

    3.25 V

  • Supply Voltage-Min:

    2.75 V

  • Supply Voltage-Nom:

    3 V

  • Surface Mount:

    YES

  • Terminal Finish:

    Matte Tin (Sn) - annealed

HMC358MS8GETR Frequently Asked Questions (FAQs)

  • A good PCB layout for the HMC358MS8GETR involves keeping the signal paths short, using a solid ground plane, and minimizing the distance between the device and the antenna. It's also recommended to use a 4-layer PCB with a dedicated layer for the RF signal, a layer for the ground plane, and two layers for the digital signals.
  • To ensure proper biasing, make sure to follow the recommended voltage supply and current requirements specified in the datasheet. Additionally, use a low-noise voltage regulator and decouple the power supply lines with capacitors to minimize noise and ripple.
  • The HMC358MS8GETR is rated for operation from -40°C to +85°C. However, it's recommended to operate the device within a temperature range of 0°C to +70°C for optimal performance and reliability.
  • To troubleshoot common issues, start by checking the PCB layout and ensuring that the device is properly biased. Verify that the input signals are within the recommended range and that the device is not overheating. Use a spectrum analyzer to measure the output signal and identify any sources of noise or interference.
  • While the HMC358MS8GETR is designed for 50 ohm systems, it can be used in non-50 ohm systems with some modifications. However, this may require additional impedance matching networks and may affect the device's performance and reliability.
