HMC385LP4 - Analog Devices

Description: VCO Oscillators VCO SMT w/Buffer amp, 2.25 - 2.5 GHz

Download HMC385LP4 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

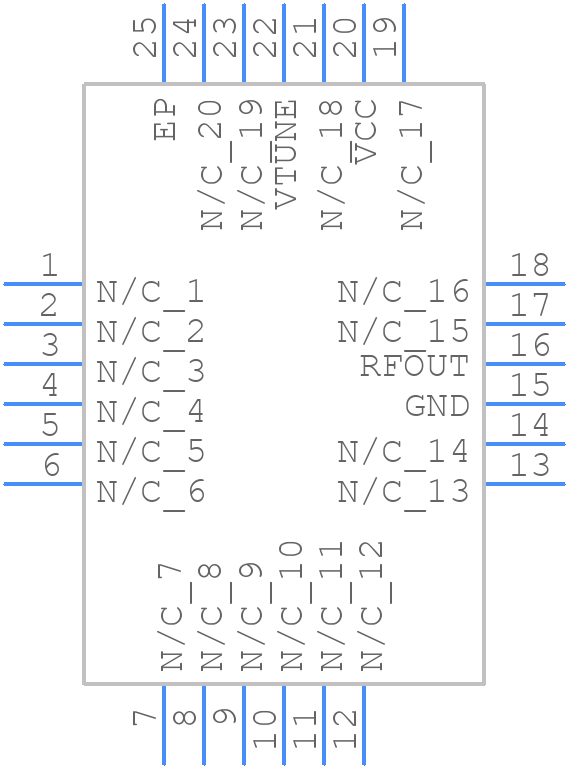

Symbol
HMC385LP4 - Analog Devices - PCB symbol
click to zoom
PCB Footprints
HMC385LP4 - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - 24-VFQFN Exposed Pad_2023
click to zoom
3D Models
HMC385LP4 - Analog Devices - 3D model - Quad Flat No-Lead - 24-VFQFN Exposed Pad_2023
click to zoom

HMC385LP4 Details

  • Manufacturer Part Number:

    HMC385LP4

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Part Life Cycle Code:

    Active

  • Package Description:

    LEADLESS, QFN-24

  • Pin Count:

    24

  • Manufacturer Package Code:

    HCP-16-1

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Control Voltage-Max:

    10 V

  • JESD-609 Code:

    e0

  • Modulation Sensitivity:

    -2 MHz/V

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Terminals:

    24

  • Offset Frequency:

    100 kHz

  • Operating Frequency-Max:

    2500 MHz

  • Operating Frequency-Min:

    2250 MHz

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Oscillator Type:

    VOLTAGE CONTROLLED OSCILLATOR

  • Output Power:

    4.5 dBm

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Equivalence Code:

    LCC24,.16SQ,20

  • Phase Noise:

    -115 dBc/Hz

  • Physical Dimension:

    4.1mm x 4.1mm x 1.0mm

  • Supply Voltage-Nom:

    3 V

  • Surface Mount:

    YES

  • Terminal Finish:

    Tin/Lead (Sn/Pb)

HMC385LP4 Frequently Asked Questions (FAQs)

  • A good PCB layout for the HMC385LP4 involves keeping the signal paths short, using a solid ground plane, and minimizing the distance between the device and the antenna. It's also recommended to use a 4-layer PCB with a dedicated layer for the RF signal, a layer for the ground plane, and two layers for the digital signals.
  • To ensure proper biasing, make sure to follow the recommended voltage supply and current requirements specified in the datasheet. The device requires a single 3.3V supply, and the recommended operating current is 30mA. Also, ensure that the voltage supply is clean and free of noise.
  • The HMC385LP4 is designed to handle a maximum input power of +20 dBm. Exceeding this power limit can cause damage to the device or affect its performance.
  • Common issues with the HMC385LP4 can be troubleshooted by checking the PCB layout, ensuring proper biasing, and verifying the input signal quality. Also, check for any signs of damage or overheating, and ensure that the device is properly shielded from external interference.
  • Yes, the HMC385LP4 can be used in a switching application, but it requires careful consideration of the switching frequency, rise and fall times, and the impact on the device's performance. It's recommended to consult with Analog Devices' application engineers for specific guidance on using the HMC385LP4 in a switching application.

Trust Checks

This model has been verified by system checks.
System Verified
Sponsored

HMC385LP4 Overview

Use the download button to access the HMC385LP4 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like HMC38, or try a keyword search, such as RF/Microwave Amplifiers

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
