HMC472ALP4ETR - Analog Devices

Description: Attenuators 6 Bit 0.5 LSB dig atten

Download HMC472ALP4ETR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

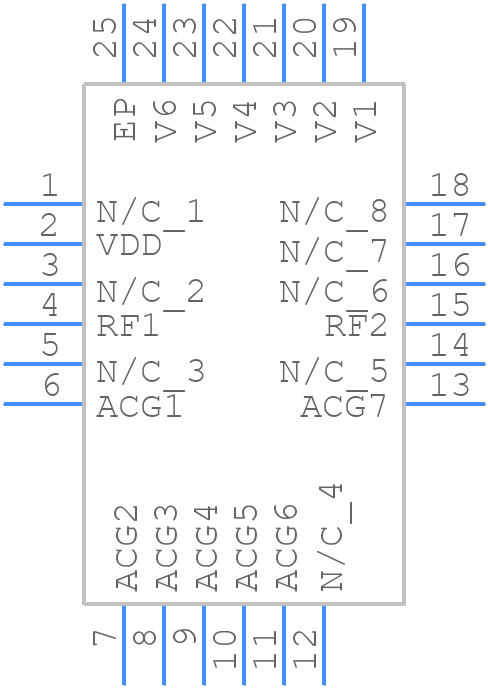

HMC472ALP4ETR - Analog Devices - PCB symbol
click to zoom
PCB Footprints
HMC472ALP4ETR - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - 24-Lead Lead Frame Chip Scale Package [LFCSP]
click to zoom
3D Models
HMC472ALP4ETR - Analog Devices - 3D model - Quad Flat No-Lead - 24-Lead Lead Frame Chip Scale Package [LFCSP]
click to zoom

HMC472ALP4ETR Details

  • Manufacturer Part Number:

    HMC472ALP4ETR

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    MO-220VGGD-8, LFCSP-24

  • Pin Count:

    24

  • Manufacturer Package Code:

    CP-24-16

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • Additional Feature:

    CMOS COMPATIBLE

  • Attenuation-Nom:

    31.5 dB

  • Characteristic Impedance:

    50 Ω

  • Construction:

    COMPONENT

  • Input Power-Max (CW):

    28 dBm

  • Insertion Loss-Max:

    3 dB

  • JESD-609 Code:

    e3

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Terminals:

    24

  • Operating Frequency-Max:

    3800 MHz

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Equivalence Code:

    LCC24,.16SQ,20

  • Power Supplies:

    5 V

  • RF/Microwave Device Type:

    VARIABLE ATTENUATOR

  • Surface Mount:

    YES

  • Technology:

    GAAS

  • Terminal Finish:

    Matte Tin (Sn)

  • VSWR-Max:

    1.22

HMC472ALP4ETR Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the input and output traces short and away from each other to minimize coupling. Use a common mode choke or a ferrite bead to filter the power supply.
  • The HMC472ALP4ETR requires a single supply voltage between 3.3V and 5V. Ensure the voltage supply is well-regulated and decoupled with 0.1uF and 10uF capacitors. The device also requires a bias current of around 10mA, which can be achieved with a 1kΩ resistor from the output to the supply voltage.
  • The maximum power dissipation of the HMC472ALP4ETR is 1.5W. Ensure the device is mounted on a PCB with a thermal conductivity of at least 1W/m-K to prevent overheating.
  • Use ESD protection devices such as TVS diodes or ESD protection arrays on the input and output pins. Ensure the PCB is designed with ESD protection in mind, and handle the device with ESD-safe materials and tools.
  • The recommended operating temperature range for the HMC472ALP4ETR is -40°C to 85°C. Ensure the device is operated within this range to ensure optimal performance and reliability.
