HMC485MS8GTR - Analog Devices

Description: RF Mixer hi IP3 mix SMT w/LO amp 1.7 - 2.4 GHz

Download HMC485MS8GTR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

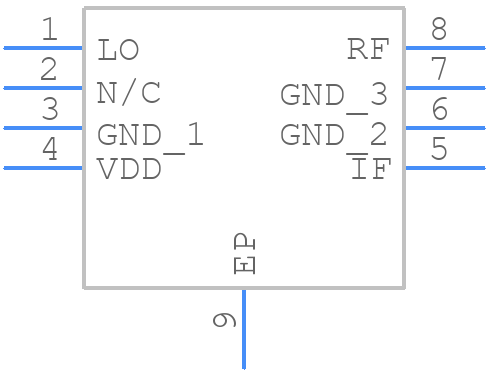

HMC485MS8GTR - Analog Devices - PCB symbol
click to zoom
PCB Footprints
HMC485MS8GTR - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - H485
click to zoom
3D Models
HMC485MS8GTR - Analog Devices - 3D model - Small Outline Packages - H485
click to zoom

HMC485MS8GTR Details

  • Manufacturer Part Number:

    HMC485MS8GTR

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    PLASTIC, MSOP-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    HRH-8-1

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    0

  • JESD-30 Code:

    S-PDSO-G8

  • JESD-609 Code:

    e0

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    235

  • Seated Height-Max:

    1.1 mm

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Telecom IC Type:

    RF AND BASEBAND CIRCUIT

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Tin/Lead (Sn/Pb)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Width:

    3 mm

HMC485MS8GTR Frequently Asked Questions (FAQs)

  • The recommended PCB layout and thermal management for the HMC485MS8GTR can be found in the application note AN-1369 from Analog Devices Inc. It provides guidelines for PCB layout, thermal management, and decoupling to ensure optimal performance and minimize thermal issues.
  • To optimize the output power and efficiency of the HMC485MS8GTR, it is recommended to follow the application note AN-1369 and adjust the input power, bias voltage, and output matching network according to the specific application requirements. Additionally, using a high-quality output matching network and optimizing the PCB layout can also help to improve the output power and efficiency.
  • The maximum operating temperature range for the HMC485MS8GTR is -40°C to +85°C. However, it is recommended to operate the device within a temperature range of -20°C to +70°C for optimal performance and reliability.
  • To troubleshoot common issues with the HMC485MS8GTR, it is recommended to follow the troubleshooting guide provided in the application note AN-1369. This guide provides step-by-step procedures for identifying and resolving common issues such as output power droop, oscillations, and thermal shutdown.
  • The recommended input and output matching networks for the HMC485MS8GTR can be found in the application note AN-1369. The input matching network should be designed to match the input impedance of the device to the source impedance, while the output matching network should be designed to match the output impedance of the device to the load impedance.
