HMC487LP5ETR footprint, schematic symbol and 3D model by Analog Devices

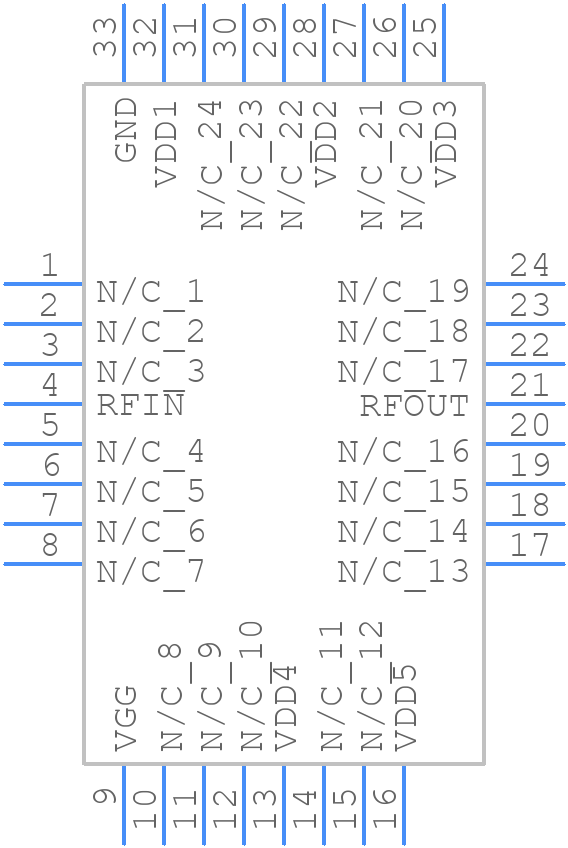

Symbol

click to zoom

PCB Footprints

HMC487LP5ETR - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - LFCSP_2026-1.4

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for HMC487LP5ETR
Part Number HMC487LP5ETR
Manufacturer Analog Devices
Pin Count 33
Part Category Integrated Circuit
Package Category Quad Flat No-Lead
Footprint Name Quad Flat No-Lead - LFCSP_2026-1.4
Released Date Aug 28, 2026
Last Modified Date Aug 28, 2026 6:52 AM UTC
Pinout / Pin List Click Here (Member Only)

HMC487LP5ETR Details

Manufacturer Part Number:
HMC487LP5ETR
Brand Name:
Analog Devices Inc
Pbfree Code:
No
Rohs Code:
Yes
Part Life Cycle Code:
Active
Package Description:
5 X 5 MM, ROHS COMPLIANT, LEADLESS, PLASTIC, SMT, 32 PIN
Pin Count:
32
Manufacturer Package Code:
HCP-32-1
Country Of Origin:
Malaysia
ECCN Code:
EAR99
HTS Code:
8542.33.00.01
Manufacturer:
Analog Devices Inc
YTEOL:
8.5
Characteristic Impedance:
50 Ω
Construction:
COMPONENT
Gain:
19 dB
Input Power-Max (CW):
20 dBm
JESD-609 Code:
e3
Mounting Feature:
SURFACE MOUNT
Number of Functions:
1
Number of Terminals:
32
Operating Frequency-Max:
12000 MHz
Operating Frequency-Min:
9000 MHz
Operating Temperature-Max:
85 °C
Operating Temperature-Min:
-40 °C
Package Body Material:
PLASTIC/EPOXY
Power Supplies:
7 V
RF/Microwave Device Type:
WIDE BAND MEDIUM POWER
Surface Mount:
YES
Technology:
PHEMT
Terminal Finish:
Matte Tin (Sn) - annealed
VSWR-Max:
1.43

HMC487LP5ETR Frequently Asked Questions (FAQs)

A good PCB layout for the HMC487LP5ETR involves keeping the signal paths short, using a solid ground plane, and placing bypass capacitors close to the device. It's also recommended to use a 4-layer PCB with a dedicated ground plane and to avoid routing high-frequency signals near the device's sensitive pins.
To ensure proper biasing, make sure to follow the recommended biasing circuit in the datasheet, which includes a voltage regulator, bias resistors, and decoupling capacitors. Also, ensure that the bias voltage is within the recommended range of 3.3V to 5V.
The HMC487LP5ETR has a maximum power handling capability of 29 dBm, which is equivalent to approximately 800 mW. Exceeding this power limit can cause damage to the device.
To troubleshoot common issues, start by checking the PCB layout and ensuring that it meets the recommended layout guidelines. Also, verify that the biasing circuit is correct and that the device is properly terminated. If issues persist, try reducing the gain or increasing the supply voltage to see if it stabilizes the device.
Yes, the HMC487LP5ETR can be used in a push-pull configuration, but it requires careful design and layout to ensure proper operation. A push-pull configuration can help improve the device's linearity and reduce distortion, but it also increases the complexity of the design.
