HMC520ALC4 - Analog Devices

Description: RF Mixer GaAs MMIC I/Q Mixer 6-10 GHz

Download HMC520ALC4 Model

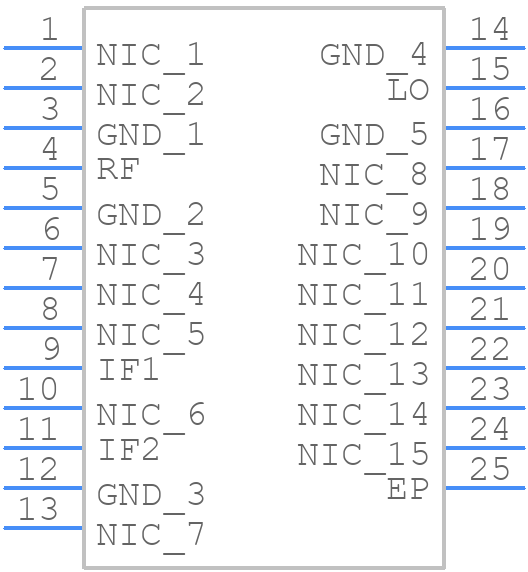

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
HMC520ALC4 - Analog Devices PCB footprint - Other - Other - 24-Terminal Land Grid Array [LGA] (CC-24-4)
click to zoom
3D Models
HMC520ALC4 - Analog Devices  - 3D model - Other - 24-Terminal Land Grid Array [LGA] (CC-24-4)
click to zoom

HMC520ALC4 Details

  • Manufacturer Part Number:

    HMC520ALC4

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Pin Count:

    24

  • Manufacturer Package Code:

    E-24-1

  • Country Of Origin:

    USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • Characteristic Impedance:

    50 Ω

  • Construction:

    COMPONENT

  • Conversion Loss-Max:

    10 dB

  • Input Power-Max (CW):

    20 dBm

  • JESD-609 Code:

    e4

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Terminals:

    24

  • Operating Frequency-Max:

    10000 MHz

  • Operating Frequency-Min:

    6000 MHz

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    CERAMIC

  • Package Equivalence Code:

    LCC24,.16SQ,20

  • RF/Microwave Device Type:

    IMAGE REJECTION

  • Surface Mount:

    YES

  • Technology:

    GAAS

  • Terminal Finish:

    Gold (Au) - with Nickel (Ni) barrier

HMC520ALC4 Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and thermal vias is recommended. Ensure good thermal conductivity by using a thermal pad and a heat sink if necessary.
  • Optimize the output power and efficiency by adjusting the input power, bias voltage, and load impedance. Use a load-pull analysis to find the optimal load impedance for maximum power and efficiency.
  • Use a conjugate match at the input and output ports to achieve maximum power transfer. A 1:1 balun can be used at the input, and a λ/4 transformer can be used at the output.
  • Monitor the device temperature and adjust the bias voltage and input power accordingly. Ensure good thermal conductivity and use a thermal shutdown circuit if necessary.
  • Handle the device with ESD-protective equipment and follow proper ESD handling procedures. Use ESD protection diodes and resistors in the circuit design to prevent damage.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

HMC520ALC4 Overview

Use the download button to access the HMC520ALC4 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like HMC52, or try a keyword search, such as RF/Microwave Mixers

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
