HMC547ALP3E - Analog Devices

Description: Analog Devices HMC547ALP3E , RF Switch 20GHz Single SPDT 31dB Isolation GaAs MMIC 16-Pin QFN

Download HMC547ALP3E Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

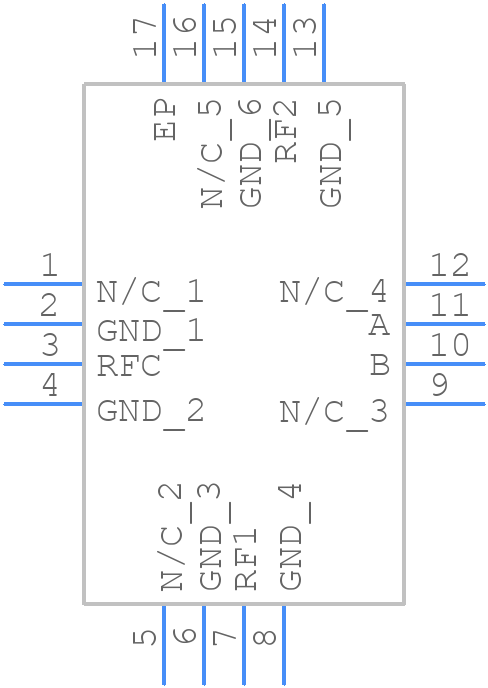

Symbol
HMC547ALP3E - Analog Devices - PCB symbol
click to zoom
PCB Footprints
HMC547ALP3E - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - HMC415LP3E
click to zoom
3D Models
HMC547ALP3E - Analog Devices - 3D model - Quad Flat No-Lead - HMC415LP3E
click to zoom

HMC547ALP3E Details

  • Manufacturer Part Number:

    HMC547ALP3E

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    QFN-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    HCP-16-1

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • 1dB Compression Point:

    29 dBm

  • Additional Feature:

    HIGH ISOLATION

  • Characteristic Impedance:

    50 Ω

  • Construction:

    COMPONENT

  • Input Power-Max (CW):

    30 dBm

  • Insertion Loss-Max:

    3 dB

  • Isolation-Min:

    31 dB

  • JESD-609 Code:

    e3

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • On Time-Nom:

    0.01 µs

  • Operating Frequency-Max:

    20000 MHz

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Port Termination:

    ABSORPTIVE

  • RF/Microwave Device Type:

    SPDT

  • Surface Mount:

    YES

  • Technology:

    PHEMT

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • VSWR-Max:

    1.33

HMC547ALP3E Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the signal traces short and away from the power plane to minimize noise coupling.
  • The HMC547ALP3E requires a single +5V power supply. Ensure the power supply is well-regulated and decoupled with 0.1uF and 10uF capacitors. The recommended bias current is 10mA.
  • The HMC547ALP3E can operate up to 6 GHz, but the optimal frequency range is between 2 GHz and 4 GHz for best performance.
  • The HMC547ALP3E has a parallel interface. Use a microcontroller or FPGA with a parallel interface to control the device. Ensure the interface signals are properly terminated and matched to the device's input impedance.
  • The typical current consumption of the HMC547ALP3E is 10mA at 5V, but this can vary depending on the operating frequency and bias conditions.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

HMC547ALP3E Overview

Use the download button to access the HMC547ALP3E schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like HMC54, or try a keyword search, such as RF/Microwave Switches

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
