HMC547LP3ETR - Analog Devices

Description: RF Switch SPDT 0MHz to 20GHz 33dB 16-Pin QFN EP T/R

Download HMC547LP3ETR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

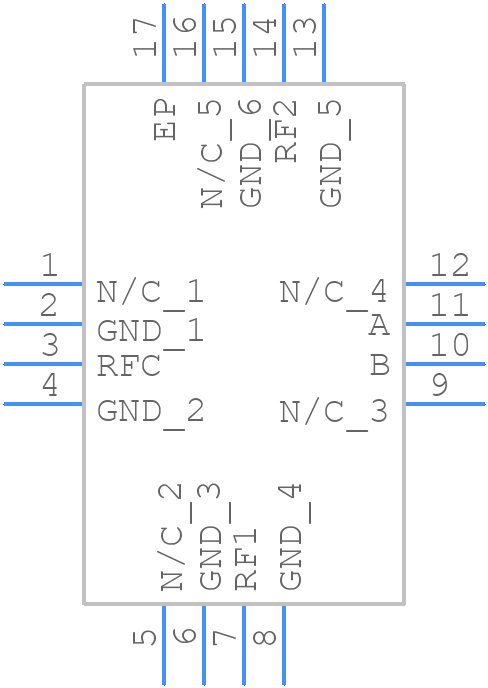

HMC547LP3ETR - Analog Devices - PCB symbol
click to zoom
PCB Footprints
HMC547LP3ETR - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - HMC547LP3ETR
click to zoom
3D Models
HMC547LP3ETR - Analog Devices - 3D model - Quad Flat No-Lead - HMC547LP3ETR
click to zoom

HMC547LP3ETR Details

  • Manufacturer Part Number:

    HMC547LP3ETR

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Pin Count:

    16

  • Manufacturer Package Code:

    HCP-16-3

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    0

  • 1dB Compression Point:

    23 dBm

  • Additional Feature:

    HIGH ISOLATION

  • Characteristic Impedance:

    50 Ω

  • Construction:

    COMPONENT

  • Input Power-Max (CW):

    30 dBm

  • Insertion Loss-Max:

    2.5 dB

  • Isolation-Min:

    33 dB

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • On Time-Nom:

    0.006 µs

  • Operating Frequency-Max:

    20000 MHz

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Equivalence Code:

    LCC16,.12SQ,20

  • Port Termination:

    ABSORPTIVE

  • RF/Microwave Device Type:

    SPDT

  • Surface Mount:

    YES

  • Technology:

    MES

  • VSWR-Max:

    1.33

HMC547LP3ETR Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the signal traces short and away from the power plane to minimize noise coupling.
  • The HMC547LP3ETR requires a single 3.3V power supply. Ensure the voltage supply is clean and regulated, and decouple the power pins with 10nF and 100nF capacitors.
  • The HMC547LP3ETR can operate up to 6 GHz, but the maximum frequency depends on the specific application and the quality of the PCB layout.
  • Use a low-noise voltage regulator, minimize the length of the input traces, and use a high-quality RF choke to isolate the power supply from the RF signal.
  • Yes, the HMC547LP3ETR can be used in a differential configuration to improve common-mode rejection and reduce noise.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

HMC547LP3ETR Overview

Use the download button to access the HMC547LP3ETR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like HMC54, or try a keyword search, such as RF/Microwave Switches

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
