- Stock & Prices $ Price & Stock for HMC566LP4ETR
- Part Number HMC566LP4ETR
- Manufacturer Analog Devices
- Pin Count 25
- Part Category Integrated Circuit
- Package Category Quad Flat No-Lead
- Footprint Name Quad Flat No-Lead - 24 lead 4x4mm QfN package
- Released Date Sep 7, 2021
- Last Modified Date Jan 10, 2024 6:27 AM UTC
- Pinout / Pin List Click Here (Member Only)
HMC566LP4ETR Details
-
Manufacturer Part Number:
HMC566LP4ETR
-
Brand Name:
Analog Devices Inc
-
Pbfree Code:
No
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Active
-
Package Description:
ROHS COMPLIANT, PLASTIC, QFN-24
-
Pin Count:
24
-
Manufacturer Package Code:
HCP-24-2
-
Country Of Origin:
South Korea
-
ECCN Code:
3A001.B.2.D
-
HTS Code:
8542.33.00.01
-
Manufacturer:
Analog Devices Inc
HMC566LP4ETR Frequently Asked Questions (FAQs)
-
A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the signal traces short and away from the power plane to minimize noise coupling.
-
Ensure the VCC and VEE pins are properly decoupled with 0.1uF and 10uF capacitors, respectively. Also, ensure the bias voltage (VBIAS) is set to the recommended 3.3V or 5V, depending on the application.
-
The maximum power dissipation of the HMC566LP4ETR is 1.5W. Ensure proper heat sinking and thermal management to prevent overheating.
-
Use a level translator or a buffer to interface the HMC566LP4ETR with a microcontroller. Ensure the microcontroller's output is compatible with the HMC566LP4ETR's input voltage range.
-
The recommended operating frequency range for the HMC566LP4ETR is 100 kHz to 6 GHz. However, the optimal frequency range depends on the specific application and requirements.
Trust Checks
Community Provided
System Verified
Community Approved
HMC566LP4ETR Overview

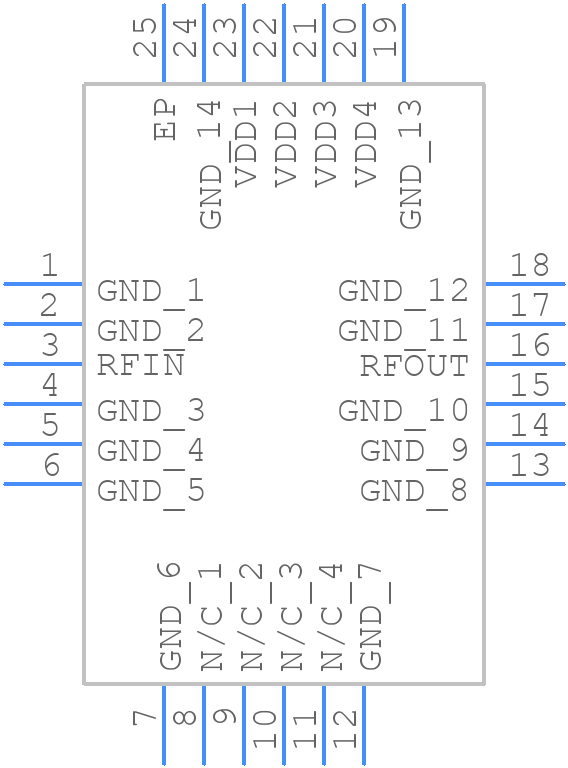

Use the download button to access the HMC566LP4ETR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like HMC56,
or try a keyword search, such as RF/Microwave Amplifiers
