HMC618ALP3ETR - Analog Devices

Description: ANALOG DEVICES - HMC618ALP3ETR - RF AMP, 19DB, 1.2-2.2GHZ, 5V, QFN-16

Download HMC618ALP3ETR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

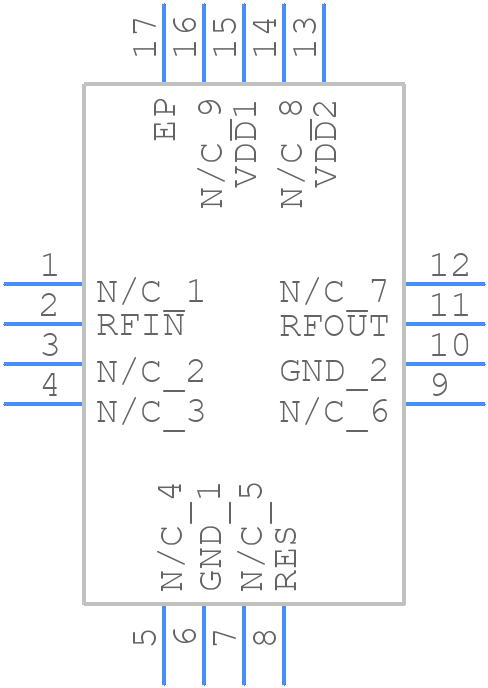

HMC618ALP3ETR - Analog Devices - PCB symbol
click to zoom
PCB Footprints
HMC618ALP3ETR - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - CP-16-50
click to zoom
3D Models
HMC618ALP3ETR - Analog Devices - 3D model - Quad Flat No-Lead - CP-16-50
click to zoom

HMC618ALP3ETR Details

  • Manufacturer Part Number:

    HMC618ALP3ETR

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Pin Count:

    16

  • Manufacturer Package Code:

    CP-16-50

  • Country Of Origin:

    South Korea

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • Characteristic Impedance:

    50 Ω

  • Construction:

    COMPONENT

  • Gain:

    13.5 dB

  • Input Power-Max (CW):

    10 dBm

  • JESD-609 Code:

    e3

  • Operating Frequency-Max:

    2200 MHz

  • Operating Frequency-Min:

    1200 MHz

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • RF/Microwave Device Type:

    WIDE BAND LOW POWER

  • Terminal Finish:

    Matte Tin (Sn)

HMC618ALP3ETR Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the signal traces short and away from noise sources. Use a common mode choke or ferrite bead to filter the power supply.
  • The HMC618ALP3ETR requires a single 3.3V power supply. Ensure the power supply is clean and well-regulated. A 10uF capacitor in parallel with a 100nF capacitor is recommended for power supply decoupling.
  • The HMC618ALP3ETR can operate up to 6 GHz, but the maximum operating frequency depends on the specific application and the quality of the PCB layout.
  • The HMC618ALP3ETR has a parallel interface. Use a microcontroller or FPGA with a parallel interface to communicate with the HMC618ALP3ETR. Ensure the interface signals are properly terminated and matched to the PCB impedance.
  • The typical current consumption of the HMC618ALP3ETR is 350mA at 3.3V. However, this can vary depending on the specific application and operating conditions.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

HMC618ALP3ETR Overview

Use the download button to access the HMC618ALP3ETR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like HMC61, or try a keyword search, such as RF/Microwave Amplifiers

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
